DWM-RAK2245 SX1301 8 Channels LoRaWAN gateway with GPS module
  • DWM-RAK2245 SX1301 8 Channels LoRaWAN gateway with GPS module

DWM-RAK2245 SX1301 8 Channels LoRaWAN gateway with GPS module

DWM19022401
Rating

DWM-RAK2245 SX1301 8 Channels Stamp Edition is a LoRaWAN gateway  Module based on SX1301,Pre-install LoRa gateway OS.

Center frequency

Volume discounts

Quantity Discount You Save
2 $0.50 Up to $1.00
4 $1.00 Up to $4.00
10 $2.00 Up to $20.00
$106.00
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

Introduction

The RAK2245 is a complete and cost efficient LoRa gateway solution base on Semtech SX1301 to help utilize the whole LoRa system developement. Developers can integrate the Concentrator module into the main board to utilize the LoRa gateway funtion. RAK2245 can support eight channels and available in multiple variants so it can be used for internartinal standard bands. This ultra compact module measures just 60mm x 30mm x14,9mm is believed to be the world’s smallest LoRaWAN gateway module which includes a GPS module and a Heat Sink for better performance and thermal heat dissipation management. This has to be the best value and function for connectivity to address a variety of applications; like Smart Grid, Intelligent Farm and other IoT enterprise applications. Combined with a Stamp form factor, which enables easy integration into an application board and also ideal for manufacturing of small series. Another feature is the integration of Ublox GPS module which expands applications.

Main Features

Compatible with Stamp edition specification with heat sink.
SX1301 base band processor, emulates 49 x LoRa demodulators 10 parallel demodulation paths, support 8 uplinks channel, 1 downlink channel.
2 x SX125x Tx/Rx front-ends high/ low frequency.
Supports 5V power supply, integrated level conversion circuit.
TX power up to 27dBm, RX sensitivity down to -139dBm@SF12, BW 125KHz.
Supports latest LoRaWAN 1.0.2 protocol.
Supports global license-free frequency band (EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865 and AS920).
Supports SPI interface.
Integrated the Ublox MAX-7Q GPS Module.

Key Fetures:

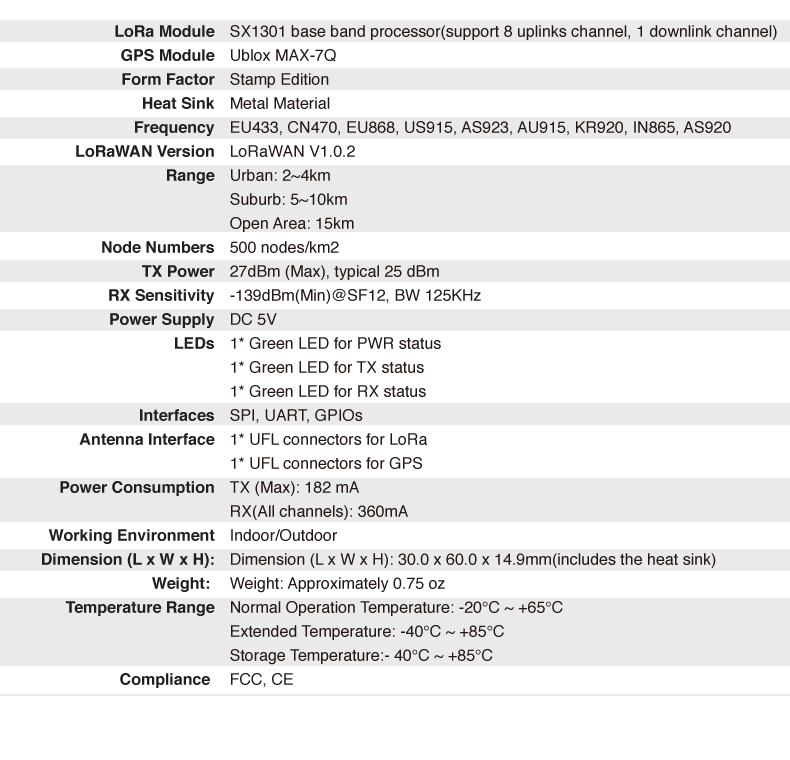

dwm-rak2245-sx1301-8-channels-lorawan-gateway-with-gps-module

PIN Definition

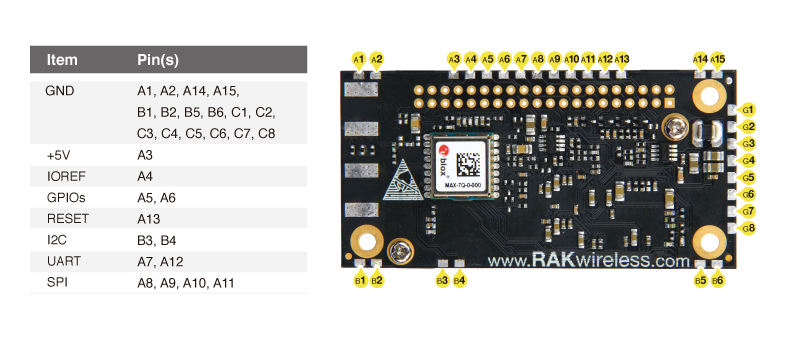

dwmzone-rak2245-sx1301-8-channels-lorawan-gateway-with-gps-module-pin-definition

Name Type Description
GND GND GND
GND GND GND
5V POWER 5V Supply Voltage
IOREF POWER Supply Voltage for Level Translator
RESET_GPS Input GPS Module reset PIN
STANDBY_GPS Input GPS Module standby PIN
UART_TXD UART Connected to GPS Module's UART_TXD
SPI_MOSI SPI Connected to SX1301's SPI_MOSI
SPI_CS SPI Connected to SX1301's SPI_CS
10 SPI_MISO SPI Connected to SX1301's SPI_MISO
SPI_CLK SPI Connected to SX1301's SPI_CLK
UART_RXD UART Connected to GPS Module's UART_RXD
RST_BTN_N RST SX1301 RESET
GND GND GND
GND GND GND
GND GND GND
GND GND GND
SDA_GPS I2C GPS
SCL_GPS I2C GPS
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND
GND GND GND



Useful Link:

User manual



Hardware-Specification





open source code link:

Here is the open source code link: https://github.com/RAKWireless/RAK2245-LoRaGateway-RPi-LoRa-Gateway-OS

Product Details
DWM19022401
150 Items
Reviews

Write your review

DWM-RAK2245 SX1301 8 Channels LoRaWAN gateway with GPS module

DWM-RAK2245 SX1301 8 Channels LoRaWAN gateway with GPS module

DWM-RAK2245 SX1301 8 Channels Stamp Edition is a LoRaWAN gateway  Module based on SX1301,Pre-install LoRa gateway OS.

Write your review
