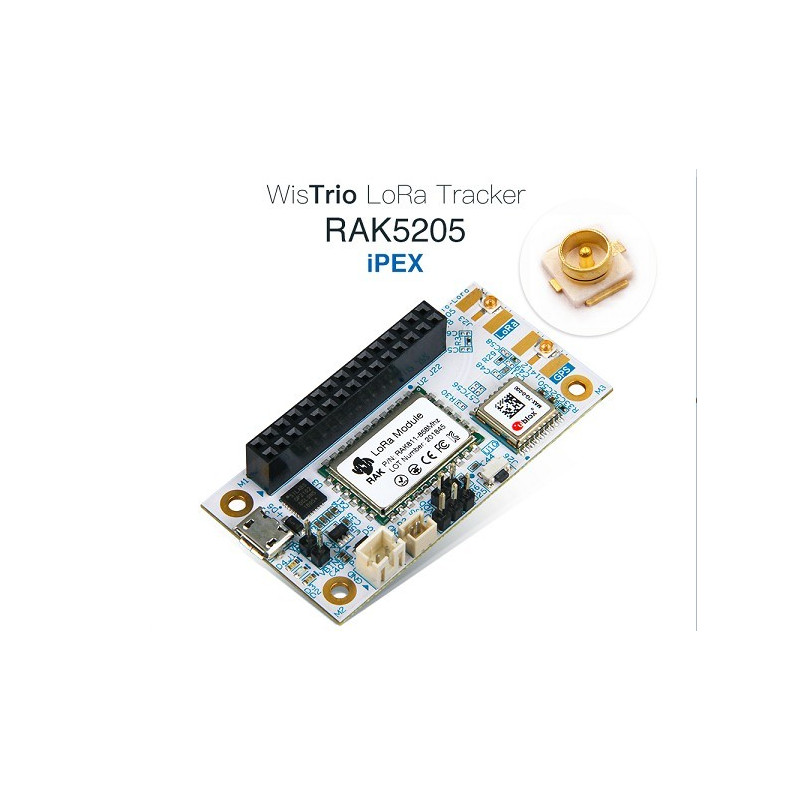

DWM-RAK5205 LoRa Tracker built on SX1276 LoRaWAN modem with low power micro-controller STM32L1, integrated the GPS module is an open all source code products,allowing users to conveniently link to the LoRaWAN network.
DWM-RAK5205 LoRa Tracker built on SX1276 LoRaWAN modem with low power micro-controller STM32L1, integrated the GPS module is an open all source code products,allowing users to conveniently link to the LoRaWAN network.
The RAK5205 LoRa tracker board is built on SX1276 LoRaWAN modem with low power microcontroller STM32L1, integrated the GPS module. It is a feature-packed sensor board that provides various interfaces for featured applications development. This is the best sensor board available in the market, ideal as a quick prototyping tool for Internet-of-Things and LoRaWAN Network integration. It is perfect for IoT applications such as asset tracking, smart vehicle management and location-based services. Most importantly, application development environments such as the CooCox IDE and Keil are all supported, users can quickly develop own applications.
Compatible with 96Boards IoT Edition Specification.
With SX1276 LoRa long range and Ublox Max 7Q GPS
modems which allow to enable the GPS low power mode.
Integrated the ultra-low power microcontroller ARM Cortex-M3STM32L1.
Built-in environmental sensor BME680 (gas, pressure, humidity,temperature) and 3-axis MEMS sensor LIS3DH(accelerometer).
SMA/iPEX antenna optional for LoRa and GPS.
Supports latest LoRaWAN 1.0.2 protocol, activation byOTAA/ABP.
Supports programmable bit rate up to 300kbps.
Supports rechargeable battery through micro USB or 5V solarcharging ports.
Supports sleep mode, the power consumption down to 14.5μA.
Supports global license-free ISM band.
Supports I2C, GPIOs, UART and ADC interfaces.
LoRa Module： RAK811 (SX1276 LoRaWAN modem and integrated the ultra-low power microcontroller ARM Cortex-M3 STM32L1)
GPS Module ： Ublox Max 7Q modem Environmental
Sensor ： BME680 (Gas, Pressure, Humidity, Temperature)3-axis MEMS
Sensor ： LIS3DH (accelerometer)
Frequency： EU433, CN470, EU868, US915, AS923, AU915, KR920, IN865
LoRaWAN Version ： LoRaWAN V1.0.2
Activation Way ： ABP and OTAA
Transmitting ： 20dBm (Max)
Receiving ： -130dBm (Min)
Peripheral Interface：Micro USB (5V), 30-pin 96Boards Headers (UART, RESET, GPIOS, I2C, ADC) , 2-pin USB Boot jumper , 3-pin UART RX jumper, 2-pin Battery female interface (3.7V) , 2-pin Solar Panel female interface (5V) , Reset Button
LED： Red: the Li-ion Battery charging Status Indication
Green: The Status can be defined by user Blue: The Status can be defined by user
Antenna Interface：RP-SMA Male connector of LoRa Antenna(optional iPEX connector) ,SMA Female connector of GPS Antenna(optional iPEX connector)
Power Consumption： Sleep mode: 14.5μA (Min) Normal mode: 174mA (Max) @ 20dBm and GPS enable
Software ： Support open source code
Enhanced AT commands
Driver support for Windows
Working Environment： Outdoor
Physical Dimension：
Dimension (L x W x H): 60mm x 30mm x 11.45mm
Weight: Approximately 5.64 oz Temperature
Range
Operation Temperature: -35° C ~ +60° C
Extended Temperature: -40° C ~ +80° C
Storage Temperature: -40° C ~ +80° C
