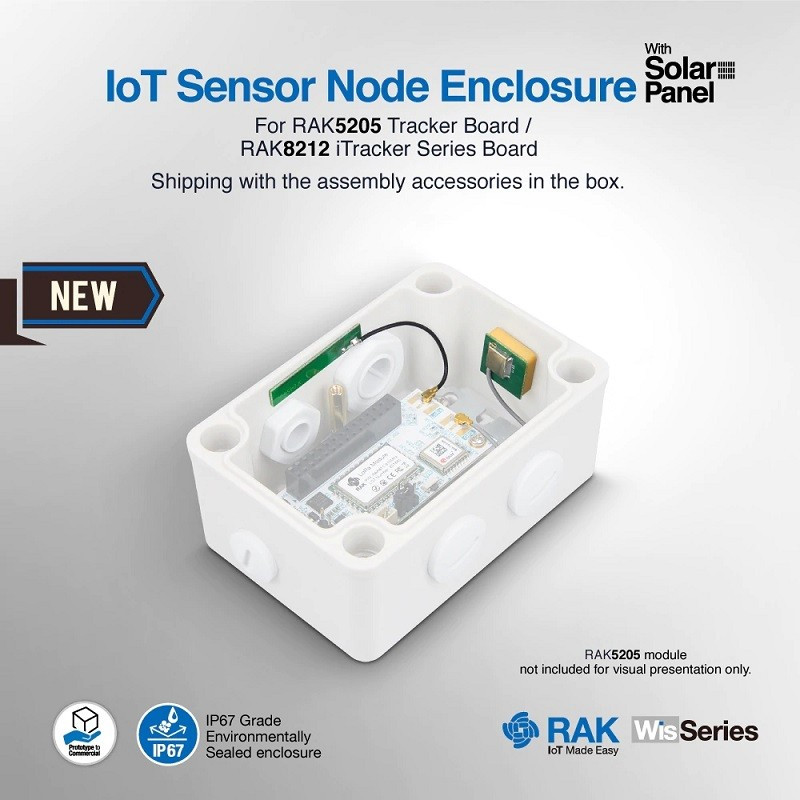

RAK7205 LoRa Tracker With Solar Panel built on RAK5205 integrated the Ublox Max 7Q module built on SX1276 LoRaWAN modem with low power micro-controller STM32L1.
The RAK7205 LoRa tracker board is built upon the RAK5205. At its core is an STM32L1 microcontroller driving Semtech’s SX1276/78 LoRa chip.
GPS is present as well as a number of sensors. The aforementioned makes the board suitable for rapid application development, such as asset tracking, vehicle management, location-based services, environmental monitoring, etc. Additionally, because of its low power consumption in sleep mode, it can provide a long lasting solution for any battery powered project.
The support for AT commands makes configuration a breeze. For advanced users is open source support in case a custom firmware is required.
Complete documentation of this product can be found on our website documentation page.
RAK5205 (STM32 MCU + SX1276/78)
GPS + Accelerometer
Environmental sensor
Battery + Solar Power Included with the box
IP67 Environmentally protected casing
Product Dimensions: 150mm x 90mm x 90mm
Package Inclusions:
RAK5205 board
GPS antenna
LoRa antenna
Jumpers
DuPont lines
Micro USB cable
Case, screws, and mounting brackets
Application Notes
Hardware Design
Software Development
Tools
