Reference: DWM14042301
Spring antenna is specialized for wireless data transmission. This antenna with good performance of V.S.W.R, small size design, easily installation, stable performance and good anti-shock and anti-aged compatible for Hoperf Modules.
Reference: DWM14032902
SMA rf antenna connector is pallets copper gold andexternal thread needle sma pallets plate rf connector.
Reference: DWM14032102
Whip antenna for sub-1 GHz, 433MHz,868MHz and 915MHz with SMA male connectors.it's used with wireless module recommanded by Hoperf .
Reference: DWM14042401
SMA RG178 extension female cable for GPS, GSM antenna,RF module, SMA cable,IPEX to SMA jumper cable.
Reference: DWM18032302
USD3.0/pcs MOQ100pcs LoRa Antenna designed for Lora application which required for outdoor waterproof highgain and work at ISM free band like 433MHz /868MHz /915MHz SMA Male Whip antenna.
Reference: DWM16121503
DWM-TLB-3.0QB SUB-1GHz / 2.4GHz Whip antenna with a Collapsible SMA male connectors.Which are available for 433MHz,868MHz.915MHz and 2.4GHz..
Reference: DWM17111002
LoRa Antenna-433MHz High Gain internal aerial piamater FPC Antenna with IPEX connctor.
Reference: DWM15101001
Brand: Semtech
RFM50 module series’ design is based on the high performance RF50 SoC chip, It include a CIP-51 core‘ MCU and 100mW transceiver. It operate at 433/470/868/915 MHz ISM band, comply with FCC, ETSI regulation.

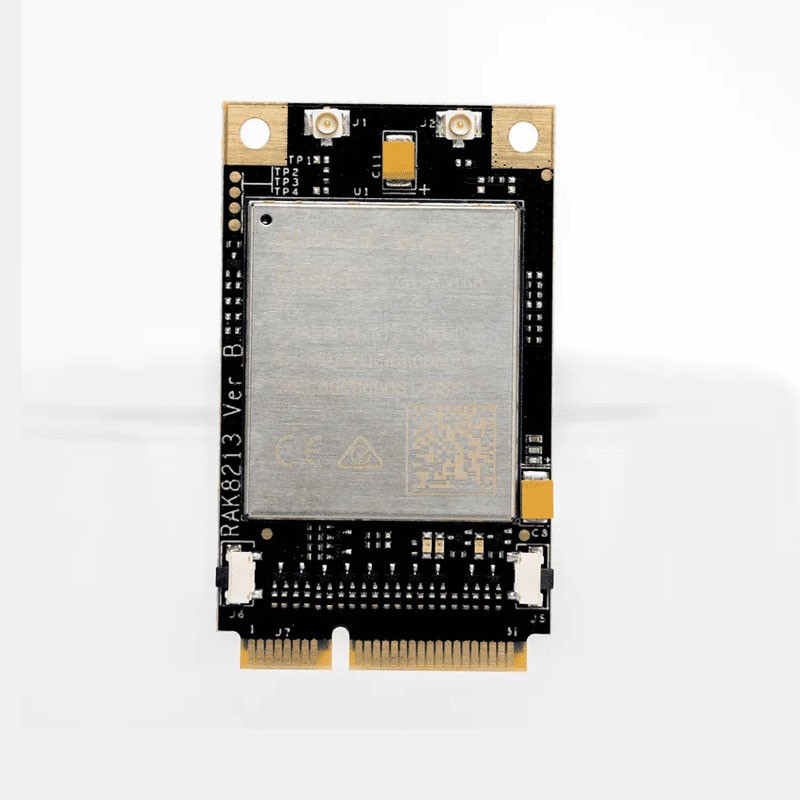

RAK8213 is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
RAK8213 is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
RAK8213 is built-in GNSS module can support GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrated GNSS greatly simplifies product design and provides faster, more accurate, and more reliable positioning.
Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.
LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
Ultra-low power consumption.
USB Drivers and support 2.0 high-speed interface.
Quectel Enhanced AT commands.
Feature refinements: supports DFOTA, VoLTE.
Easy migration from Quectel GSM/GPRS, UMTS/HSPA, and LTE modules.
Robust mounting and interfaces
PCM interface available for VOLTE
| EG95-E for EMEA Region | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM/EDGE: B3/B8 |
| EG95-NA for North America Region | LTE FDD: B2/B4/B5/B12/B13 WCDMA: B2/B4/B5 Optional supports other PCIE LTE module for Global Region |
M2M and IoT applications
Tracker application
Product Dimensions: 51mm x 30mm x 4.9mm (± 0.2mm)
Product Weight: 8.9g
1x RAK8213 module
1x iPEX LTE Antenna
1x iPEX GPS Antenna
1x SIM Card
Reference: DWM19091702
RAK2247 LoRa Gateway mPCIE Board-RAK833 Concentrator Module is the evolution of RAK833 is a LoRaWAN gateway Module based on SX1301,Pre-install LoRa gateway OS.
Reference: DWM21040701
DWM-RAK2287 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1302, the module comes with a ZOE-M8Q GPS chip, in order to provide GNSS functionality.
Reference: DWM22040501
The LPS8N is an open-source LoRaWAN Gateway which includes a SX1302/03 LoRa concentrator and has an optional cellular version that can provide 3G/4G connectivity to the internet.
Reference: DWM23091101
The BG96 is an LTE Cat M1/Cat NB1/EGPRS module which is compatible with Quectel’s LTE Standard module EG91/EG95, LPWA module BC95-G/BG95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.
Reference: DWM19022801
DWM-RAK2245 Pi HAT based SX1301 8 Channels LoRaWAN gateway with GPS module is a LoRaWAN gateway Module based on SX1301,Pre-install LoRa gateway OS.
Reference: DWM22062201
LoRaWAN Development kit Create IoT applications for different solutions, like environmental sensing, agriculture solutions, GPS trackers.
Reference: DWM19070804
RAK7258 Micro Gateway is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode.
Reference: DWM20061601
Brand: Semtech
The RAK7246 is a LoRaWAN® developer gateway is the model without the GPS function. It is a device composed of a the RAK2246 Pi HAT LPWAN Concentrator module and Raspberry Pi Zero W.
Reference: DWM18011701
RAK811 LoRa module complies with the latest LoRaWAN Class A & C protocol specifications, it is simple to access LWPA IOT platforms integrates SX1276 and stm32L with TELEC CE FCC KCC certification.
Reference: DWM18011801
DWM-RAK83 433MHz/ 868MHz/ 915MHz SX1301 LoRa/ LoRaWAN Gateway Module combine a host system like Raspberry Pi or WisAP(OpenWRT based) or WisCam to help you realize the whole Lora system development.
Reference: DWM19022803
DWM-RAK2245 Pi HAT Raspberry Pi 3B Lora tracker start kit is a LoRaWAN gateway Module based on SX1301,Pre-install LoRa gateway OS.
Reference: DWM22052403
RAK8213 is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel BG96 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
Reference: DWM22022502
RAK2287 /RAK5146 Pi HAT is a converter board with a Raspberry Pi form factor that enables the RAK2287 and RAK5146 LPWAN concentrator module to be mounted on the top of the Raspberry Pi.
Reference: DWM22062301
The LoRaWAN GNSS GPS Tracker is with a sensor to detect location change every set time interval and with solar panel built-in on the enclosure Use this kit for tracking and monitoring cargo, vehicles, and marine vessels.
Reference: DWM21040701
DWM-RAK2287 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1302, the module comes with a ZOE-M8Q GPS chip, in order to provide GNSS functionality.
Reference: DWM19070803
RAK7258 Micro Gateway is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode.
Reference: DWM20053001
Brand: Semtech
DWM-RAK4600 LPWAN Module includes an nRF52832 MCU and an SX1276 LoRa® chip. It has an ultra-low power consumption of 2.0uA in sleep mode, high LoRa® output power up to 20dB max in work mode, and BLE output power up to 4dBm.
Reference: DWM21030102
LoRa Antenna-868MHz /915MHz 8dBi Glass Fiber Antenna with N Female Connector. Out Door Waterproof Fiberglass Antenna which is designed for Lora application required for high gain outdoor waterproof.
Reference: DWM20092102
DWM-RAK7240 8 channels OpenWRT OS DIY Enterprise LoRa Gateway Builtin OpenWRT OS support 16 channels LoRa/4G/WIFI/GPS .
Reference: DWM20053104
Brand: Semtech
DWM-RAK4260 Breakout Module is specifically designed to allow easy excess to the pins on the module in order to simplify development and testing.
RAK8213 is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375Kbps downlink and 375Kbps uplink.
