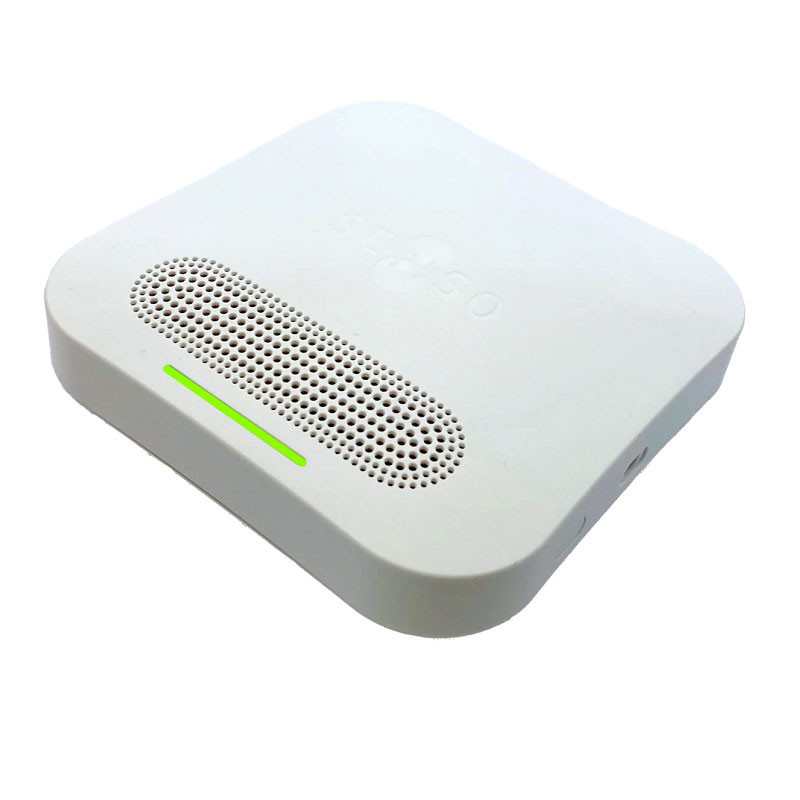

The LRS10701-CPV0 by SENSO8 is an advanced indoor air quality (IAQ) monitoring device. The sensor monitors parameters such as temperature, humidity, PM1.0, PM2.5, PM10, CO2, TVOC, and other relevant parameters.
The LRS10701-CPV0 by SENSO8 is an advanced indoor air quality (IAQ) monitoring device designed to create a healthy, safe, and comfortable indoor environment. LoRaWAN wireless communication technology provides reliable, long-range, low-power monitoring of key air quality parameters to help individuals and organizations maintain optimal indoor air quality, promoting health, well-being, and productivity.
Multi-Parameter Real-Time Monitoring
The sensor monitors a comprehensive set of environmental parameters with the following ranges and precision:
| Parameter | Range | Precision | Description |
|---|---|---|---|
| PM1.0, PM2.5, PM10 | 0 µg/m³ – 2000 µg/m³ | ±10% | Measures particulate matter of different sizes, critical for respiratory health. |
| CO2 | 400 ppm – 5,000 ppm | ±30 ppm | Indicates ventilation quality and occupant density. High levels may impair cognition. |
| TVOC | 0 – 60,000 ppb | ±15% | Measures total volatile organic compounds, common indoor pollutants. |
| Temperature | -20°C – 60°C | ±0.6°C (-20°C to -10°C) ±0.4°C (-10°C to 5°C) ±0.2°C (5°C to 60°C) |
Monitors ambient temperature for comfort and safety. |
| Humidity | 10% – 100% RH | ±4% (10-20% RH) ±2% (20-80% RH) ±4% (80-100% RH) |
Tracks relative humidity to maintain healthy indoor moisture levels. |
The LRS10701-CPV0 uses LoRaWAN® technology, providing:
Long-range connectivity with low power consumption.
Frequency bands supported(typical): EU868 / US915 / AU915 / AS923.
Transmit power: 14 dBm.
Receiver sensitivity: -140 dBm.
OTAA Class A mode for secure and efficient network connection.
Powered by 2 x 3.6V C size ER26500 batteries or DC power (8.5-15V DC, max 1A), the device supports:
Up to 3.5 years of battery life under typical usage.
Measurement intervals are configurable, typically with DC power every 10 minutes (battery powered) or more frequently.
Data upload intervals (heartbeat) every 10 minutes (battery and DC power).
Features a color LED bar that visually represents the current air quality level, allowing quick and easy assessment at a glance.
Allows customization of measurement intervals and alarm thresholds to suit different environments and user preferences.
Designed to meet WELL Building Standard v2.2 requirements, supporting buildings aiming to promote occupant health and well-being through superior indoor air quality management.
| Specification | Details |
|---|---|
| Wireless Connectivity | LoRaWAN® |
| Frequency Bands(typical) | EU868 / US915 / AU915 / AS923 |
| Transmit Power | 14 dBm |
| Receiver Sensitivity | -140 dBm |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Storage Humidity | 10% to 95% RH |
| Dimensions (LxWxH) | 119 x 119 x 37.5 mm |
| Weight | Approx. 175 g (excluding battery/DC power) |
| Installation | Wall mounting bracket |
| Antenna Type | Internal antenna |
| Power Supply | 2 x 3.6V C size ER26500 batteries or 8.5-15V DC power adapter |
| Battery Life | Up to 3.5 years (typical) |
| Measurement Interval | Battery: every 10 mins DC Power: every 10 mins |
| Data Upload Interval | Every 10 minutes |
| Mode | OTAA Class A (LoRaWAN Network) |
1. Health and Safety in New Buildings and Renovations
Ideal for monitoring particulate matter, CO2, and TVOC levels in newly constructed or renovated spaces, ensuring air quality remains safe during critical initial occupancy periods. Suitable for homes, schools, daycare centers, and healthcare facilities.
2. Smart Office Air Quality Monitoring and Management
Enables continuous monitoring of key air quality parameters to optimize workplace environments, enhancing occupant comfort, reducing health risks, and improving productivity.
3. Smart Classroom Air Quality Monitoring
Supports educational institutions by maintaining optimal air quality through real-time monitoring and integration with ventilation and climate control systems, fostering healthier and more productive learning environments.
1x LRS10701-CPV0 Environmental Sensor
1x Wall Mounting Kit
