Reference: DWM14042301
Spring antenna is specialized for wireless data transmission. This antenna with good performance of V.S.W.R, small size design, easily installation, stable performance and good anti-shock and anti-aged compatible for Hoperf Modules.
Reference: DWM14032902
SMA rf antenna connector is pallets copper gold andexternal thread needle sma pallets plate rf connector.
Reference: DWM14032102
Whip antenna for sub-1 GHz, 433MHz,868MHz and 915MHz with SMA male connectors.it's used with wireless module recommanded by Hoperf .
Reference: DWM14042401
SMA RG178 extension female cable for GPS, GSM antenna,RF module, SMA cable,IPEX to SMA jumper cable.
Reference: DWM18032302
USD3.0/pcs MOQ100pcs LoRa Antenna designed for Lora application which required for outdoor waterproof highgain and work at ISM free band like 433MHz /868MHz /915MHz SMA Male Whip antenna.
Reference: DWM16121503
DWM-TLB-3.0QB SUB-1GHz / 2.4GHz Whip antenna with a Collapsible SMA male connectors.Which are available for 433MHz,868MHz.915MHz and 2.4GHz..
Reference: DWM17111002
LoRa Antenna-433MHz High Gain internal aerial piamater FPC Antenna with IPEX connctor.
Reference: DWM15101001
Brand: Semtech
RFM50 module series’ design is based on the high performance RF50 SoC chip, It include a CIP-51 core‘ MCU and 100mW transceiver. It operate at 433/470/868/915 MHz ISM band, comply with FCC, ETSI regulation.

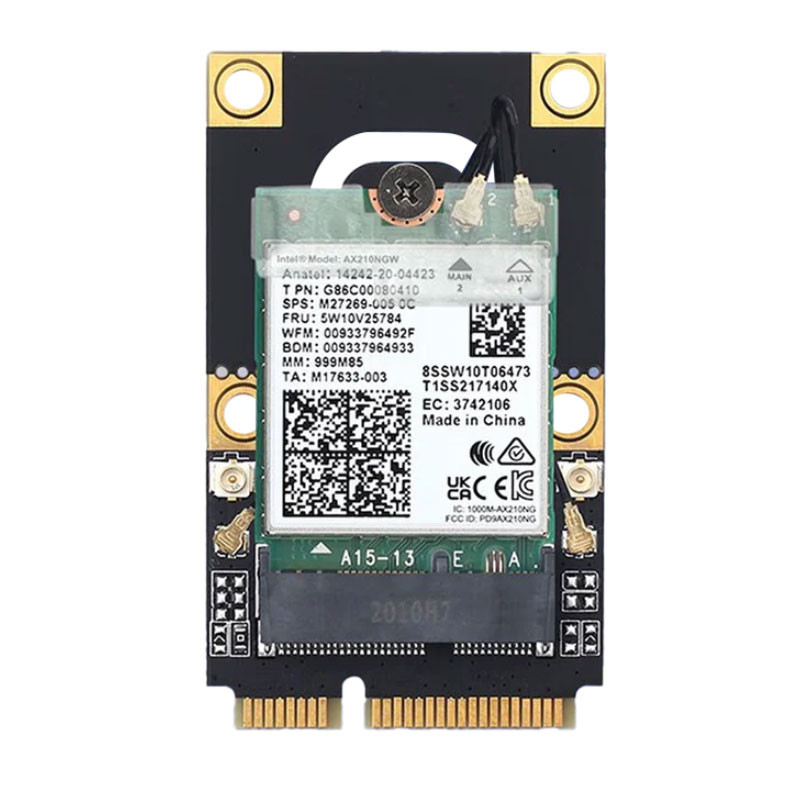

PCIE-M.2 WiFi6 AX210N Module for WLAN/ Bluetooth, which can work with the RAK7391 IOT LoRaWAN Gateway Carrier Board MiniPCIe Slot #3.
The Intel Wi-Fi 6e AX210 adapter is designed to support the upcoming IEEE 802.11 ax standard, Wi-Fi 6e technology, and the Wi-Fi Alliance Wi-Fi 6e certification. The product supports 2x2 Wi-Fi 6 technology, delivering data rates of up to 2.4 Gbps and increased network capacity as well as Bluetooth 5.2 support. These new features provide a significant improvement, supporting fast uploads and downloads, lower latency, and longer battery life compared to solutions supporting 802.11ac.
Model: Wi-Fi 6E AX210
Interface: M.2 A+E (includes an adapter to mini PCIe)
Dual band: 2.4 GHz, 5 GHz, and 6 GHz (160MHz)
Speed up to 2400Mbps (the router should support 160 MHz channels- 802.11ax)
Support Bluetooth 5.2
The RAK7391 supports Wi-Fi 6 modules via the mPCIe interface. The OS image includes pre-installed firmware and drivers for several Intel Wi-Fi 6 card models, such as the AX200, AX201, and AX210. For instance, the WiFi6E Intel AX210 module has been tested and works as a Plug & Play device when connected to MiniPCIe #3 on the RAK7391.
In RAKPiOS, the wireless interface name for the module should be wlan1. To connect to a Wi-Fi 6 hotspot, follow the same procedure as for Wi-Fi 5, but update the interface name from wlan0 to wlan1 in the configuration.
Reference: DWM21040701
DWM-RAK2287 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1302, the module comes with a ZOE-M8Q GPS chip, in order to provide GNSS functionality.
Reference: DWM22022502
RAK2287 /RAK5146 Pi HAT is a converter board with a Raspberry Pi form factor that enables the RAK2287 and RAK5146 LPWAN concentrator module to be mounted on the top of the Raspberry Pi.
Reference: DWM24081401
RAK7391 IOT LoRaWAN Gateway Carrier Board with a RAK5146 LPWAN Concentrator module adapted Raspberry Pi CM4 is a great board to build your solution, whether a gateway, edge device, or a general-purpose computer!
Reference: DWM24092501
RAK8213 is a multi-band LTE Cat M1/Cat NB1/EGPRS module based on the Quectel EG95 with a standard PCI Express® form factor (Mini PCIe). It offers a maximum data rate of 375 Kbps downlink and 375 Kbps uplink.
Reference: DWM23080407
RAK Industrial IO and Communication Kit with RAK5860 NB-IOT module Quectel BG77 which is including LIN, CAN, SDI-12, 4-20 mA, RS485, Ethernet, Analog, and Relay for data acquisition and control.
Reference: DWM23100901
RAK7289V2 WisGate Edge Pro Version 2 is an ideal product for IoT commercial deployment. With its industrial-grade components, it achieves a high standard of reliability.Supports 8 LoRa channels, multi backhaul with Ethernet, Wi-Fi, and Cellular connectivity.
Reference: DWM19022001
DWM-RAK7249 is The Enterprise DIY outdoor LoRaWan GATEWAY Builtin OpenWRT OS support 16 channel LoRa/4G/WIFI/GPS .
Reference: DWM23080608
The LoRaWAN Smart Home Office Security Kit includes a range of sensors and intrusion detection sensors include PIR, radar, and ultrasonic sensors. The access control modules include fingerprint, NFC, and barcode sensors that provide secure and convenient access to your home or office.
Reference: DWM23080505
Light and Color Kit with RAK13101 GSM module Quectel MC20CE includes RGB, visible, and UV light sensors, as well as LED bar and RGB modules, providing a versatile platform for measuring and controlling light and color in a wide range of applications.
Reference: DWM22082501
RAK5010 is a tracker with integrated LTE CAT M1 & NB1, GPS, BLE, and sensors. It is built on the Quectel BG96 LTE CAT M1 & NB1 module, which has an integrated GPS receiver. The MCU running the board is a Nordic nRF52840 controller.
Reference: DWM23080101
The RAK Agriculture Kit with RAK5860 NB-IOT module Quectel BG77 with LoRaWAN, NB-IoT The Kit includes a range of sensors designed specifically for agriculture, including soil, light, and environmental sensors, as well as common interfaces like SDI-12, 4-20 mA, and RS485, providing a versatile platform for monitoring and controlling agricultural conditions.
Reference: DWM25042503
PCIE-M.2 Mioty® 868 MHz Miro Edge Card on Mini PCIe, which can work with the RAK7391 IOT LoRaWAN Gateway Carrier Board MiniPCIe Slot #1, Slot #2, Slot #3.
Reference: DWM22123003
RAK9003 PoE Pi HAT can power the RPi 3B+ and RPi 4 directly through your gateway's Ethernet port. suitable for deployments utilizing cabled network connectivity.
Reference: DWM18011801
DWM-RAK83 433MHz/ 868MHz/ 915MHz SX1301 LoRa/ LoRaWAN Gateway Module combine a host system like Raspberry Pi or WisAP(OpenWRT based) or WisCam to help you realize the whole Lora system development.
Reference: DWM23080403
The WisBlock Environment Sensor Kit is a comprehensive IoT kit that includes sensors for monitoring various environmental conditions. It features sensors for temperature, humidity, pressure, UV, CO2, Particulate Matter, VOC, and IAQ. Additionally, it supports different connectivity options like LoRaWAN, BLE, LTE-M, and NB-IoT.
Reference: DWM23051901
RAK3272S Breakout Board is specifically designed to allow easy access to the RAK3172 low power long range LoRawan module the board in order to simplify development and testing.
Reference: DWM23080609
The IOT Smart Industry 4.0 Kit with RAK5860 NB-IOT module Quectel BG77 includes a range of sensors, including inductive, proximity, fork, and current/coulomb sensors, as well as interfaces commonly used in industrial environments, such as relays, joysticks, and barcode scanners.
Reference: DWM23080606
The Smart Home Office Security Kit with RAK5860 NB-IOT module Quectel BG77 includes a range of sensors and intrusion detection sensors include PIR, radar, and ultrasonic sensors. The access control modules include fingerprint, NFC, and barcode sensors that provide secure and convenient access to your home or office.
Reference: DWM22123001
The Raspberry Pi 4 Model B is the best single-board computer to develop your IoT project, and start your first gateway for NB-IoT/Cat-M and LoRaWAN with the RAK Pi HAT.
Reference: DWM22022501
RAK7268 WisGate Edge Lite 2 Sx1302 Openwrt 8-channel indoor LoRaWAN gateway with built-in Ethernet and Wi-Fi connectivity supports LTE uplink communication connections (optional).
PCIE-M.2 WiFi6 AX210N Module for WLAN/ Bluetooth, which can work with the RAK7391 IOT LoRaWAN Gateway Carrier Board MiniPCIe Slot #3.
