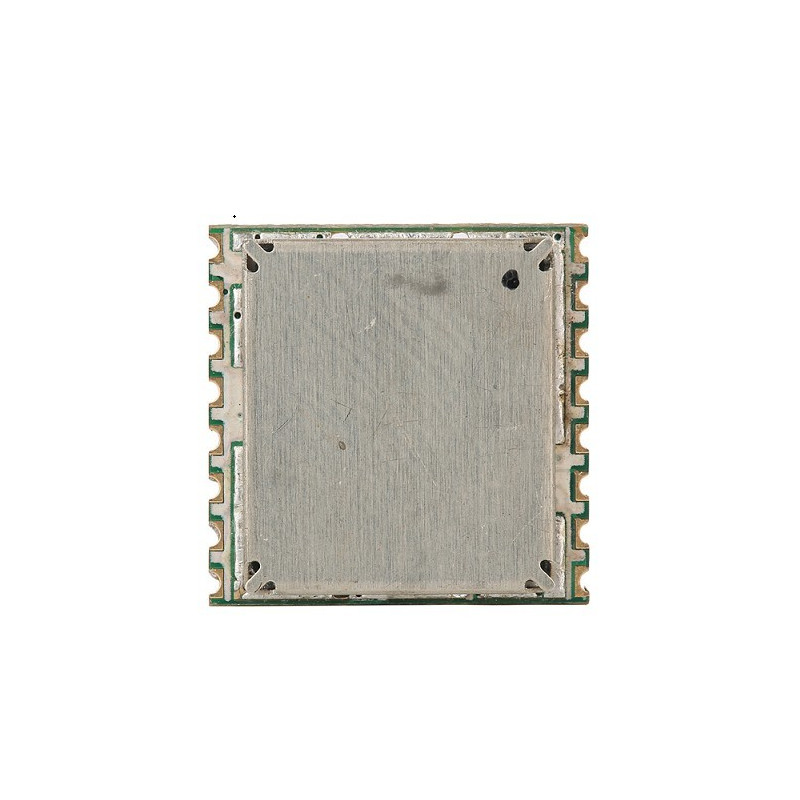

HPD14A SX1278 433MHz /470MHz LoRa Wireless transceiver module
  • HPD14A SX1278 433MHz /470MHz LoRa Wireless transceiver module
  • HPD14A SX1278 433MHz /470MHz LoRa Wireless transceiver module

HPD14A SX1278 433MHz /470MHz LoRa Wireless transceiver module

DWM18051402

HPD14A SX1278 433MHz /470MHz LoRa Wireless transceiver module feature the LoRaTM long range modem It's from the HopeRF LoRa module.build by the semtech chipset with the application for ARM meters.

Center frequency

Volume discounts

Quantity Unit discount You Save
10 $0.20 Up to $2.00
50 $0.50 Up to $25.00
100 $0.80 Up to $80.00
$5.00
Tax excluded
Quantity

Description

GENERAL DESCRIPTION

The  HPD14A SX1278 transceivers  feature  the  LoRaTM  long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.patented LoRaTM modulation technique RFM96W can achieve a sensitivity of over -148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields  industry  leading  link  budget  making  it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM96W deliver exceptional phase noise, selectivity, receiver linearity  and  IIP3  for  significantly lower  current consumption than competing devices.

KEY PRODUCT FEATURES

  • LoRaTM Modem.
  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.
  • Modue Size:16*16mm

APPLICATIONS

  • Automated Meter Reading.
  • Home and Building Automation.
  • Wireless Alarm and Security Systems.
  • Industrial Monitoring and Control
  • Long range Irrigation Systems



dwmzone-HPD14A-Sx1276 -433MHz -470MHz-LoRa -transceiver-RF -module-pin

Useful Link:

RFM98W: Demo codeRoHS report,  FCC test report,  ETSI test reportCE test reportFCC for 470MHz

Datasheet:  RFM96WRFM98W.

User guideRFM9x StartKit Tool Application User Guide
