Reference: DWM14041701

HopeRF DK / EVB board

Review(s): 0

HopeRF DK / EVB board which can be used to develop and demo all of  series HopeRF modules like the RFM22B,RFM69W,RFM69HW and RFM98W and RFM95W ext.

Price $105.00 Regular price $110.00
More
In stock
All best sellers
  • On sale!

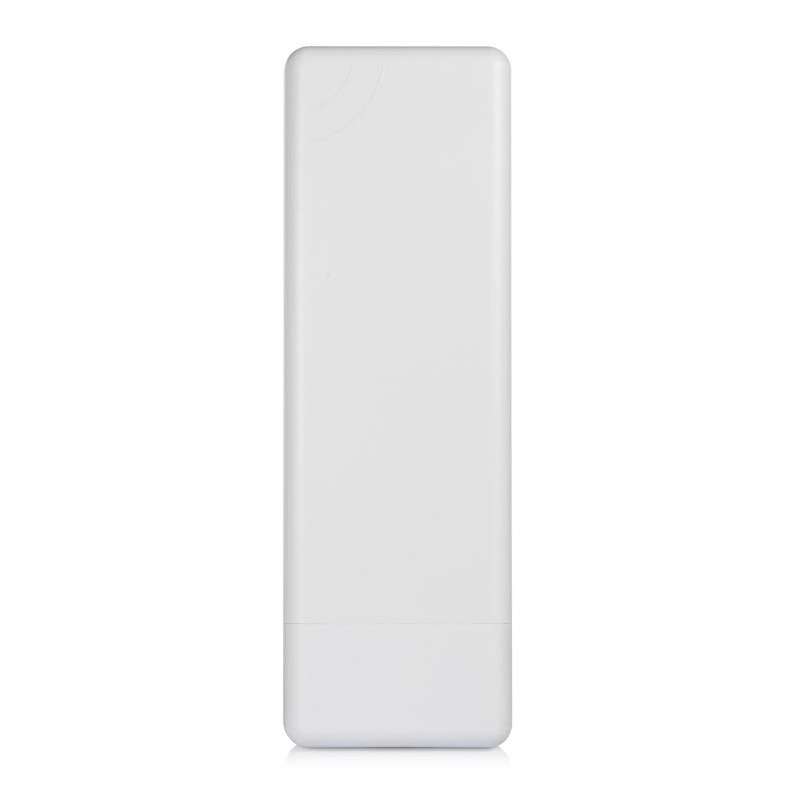

OLG01 IOT LoRa Gateway Water proof outdoor single channel LoRa Gateway
  • OLG01 IOT LoRa Gateway Water proof outdoor single channel LoRa Gateway

USD74/pcs MOQ100 OLG01 IOT LoRa Gateway Water proof outdoor single channel LoRa Gateway

DWM18103005
Rating

USD74/pcs MOQ100  The OLG01 is an Water proof outdoor setting open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular.

Center frequency
$74.00
Quantity

The minimum purchase order quantity for the product is 100.

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

The OLG01 is an Water proof outdoor setting open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular.  The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity.

OLG01 has WiFi interface, Ethernet port and USB host interface. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

OLG01 runs Open Source OpenWrt system, user are free to modify the source file or compile the system to support their customized applications.

Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Support WiFi AP, Client or Ad-Hoc(Mesh) mode
  • Internet connection via LAN, WiFi, 3G or 4G
  • Failsafe design provides robustly system
  • Arduino IDE compatible. Easy to program.
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa : 5 ~ 10km
  • SMA connector for external LoRa antenna
  • 12dBi WiFi directional antenna
  • Passive PoE Interface
  • Weather proof enclosure


Specifications:

Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB



MCU/LoRa Side:

  • MCU: ATMega328P
  • Flash:32KB, RAM:2KB
  • LoRa Chip: SX2176/78



Interfaces:

  • 10M/100M RJ45 Ports x 2, Support Passive PoE
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • USB 2.0 host connector x 1
  • USB 2.0 host internal interface x 1



Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc
