HPD13A Sx1276 868MHz /915MHz LoRa transceiver RF module
  • HPD13A Sx1276 868MHz /915MHz LoRa transceiver RF module
  • HPD13A Sx1276 868MHz /915MHz LoRa transceiver RF module

HPD13A Sx1276 868MHz /915MHz LoRa transceiver RF module

DWM18051401
Rating

HPD13A Sx1276 868MHz /915MHz LoRa transceiver RF module feature the LoRa TM long range rf module which core chipset are the semtech serice LoRa chipset,usually build for the ARM application.

Center frequency

Volume discounts

Quantity Discount You Save
5 $0.50 Up to $2.50
10 $0.80 Up to $8.00
50 $1.00 Up to $50.00
$6.90
$6.60 Save $0.30
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

Brief introduction

The HPD13A Sx1276 transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
 patented LoRaTM modulation technique HPD13A Sx1276 can achieve a sensitivity of over -137.5 dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier  yields  industry  leading  link  budget  making  it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The RFM92W deliver exceptional phase noise, selectivity, receiver linearity  and  IIP3  for  significantly lower  current consumption than competing devices.

KEY PRODUCT FEATURES

  •   LoRaTM Modem.
  • 157.5 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -137.5 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm with FSK.
  • 100 dB blocking immunity.
  • Low RX current of 10 mA, 100 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Sync word recognition.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense with ultra-fast AFC.
  • Packet engine up to 64 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.
  • Module Size:16*16mm.


APPLICATIONS

  • Automated Meter Reading.
  • Home and Building Automation.
  • Wireless Alarm and Security Systems.
  • Industrial Monitoring and Control

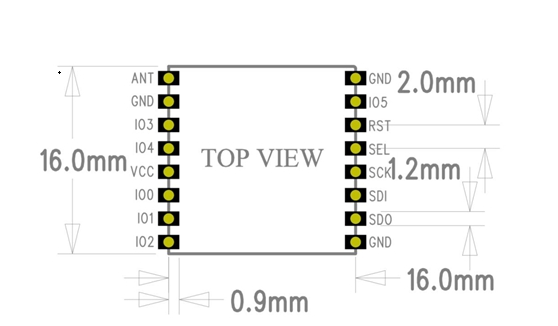

 dwmzone-HPD13A-Sx1276 -868MHz -915MHz-LoRa -transceiver-RF -module-pin



Useful Link:

Application noteDemo code for RFM92WROHSFCC,ETSI.

RFM95WDemo codeRoHS report FCC test report,  ETSI test report.

DatasheetRFM92WRFM95W.


User guide
: RFM9x StartKit Tool Application User Guide
