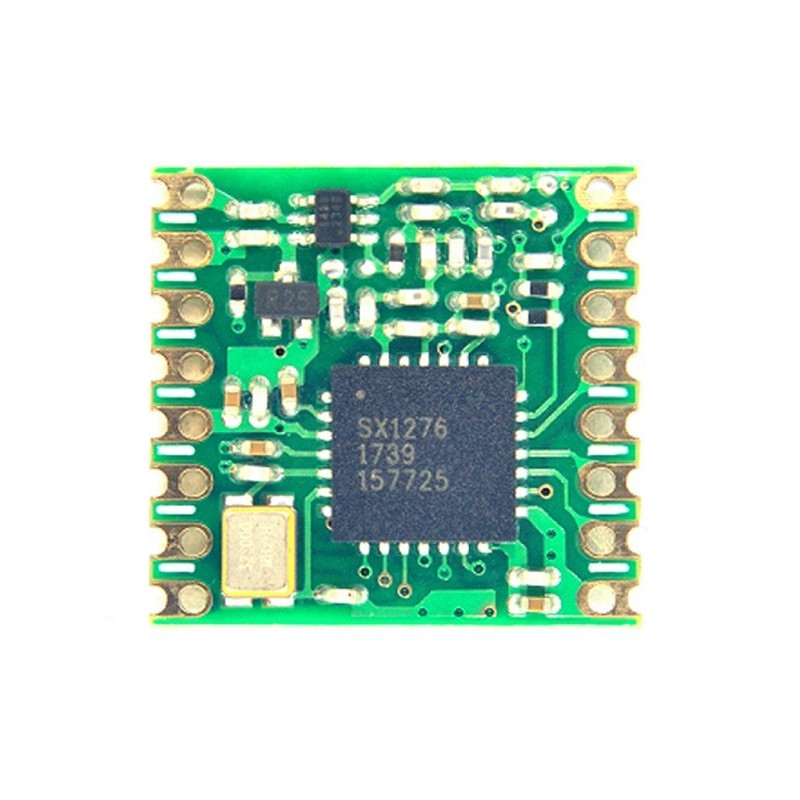

DWM-1276S 868MHz /915MHz  sx1276  LoRa transceiver RF module compatible with RFM95W
  • DWM-1276S 868MHz /915MHz  sx1276  LoRa transceiver RF module compatible with RFM95W

DWM-1276S 868MHz /915MHz sx1276 LoRa transceiver RF module compatible with RFM95W

DWM18120401
Rating

DWM-1276S 868MHz /915MHz  sx1276  LoRa transceiver RF module compatible with RFM95W  which core chipset are the semtech SX1276 LoRa chipset,usually build for the ARM application.

Center frequency

Volume discounts

Quantity Discount You Save
5 $0.50 Up to $2.50
10 $0.80 Up to $8.00
50 $1.00 Up to $50.00
$5.80
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

DWM-1276S 868MHz /915MHz  sx1276  LoRa transceiver RF module compatible with RFM95W  which core chipset are the semtech SX1276 LoRa chipset,usually build for the ARM application.

KEY PRODUCT FEATURES

  •   LoRaTM Modem.
  • 157.5 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs. V supply.
  • +14 dBm high efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -137.5 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm with FSK.
  • 100 dB blocking immunity.
  • Low RX current of 10 mA, 100 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Sync word recognition.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense with ultra-fast AFC.
  • Packet engine up to 64 bytes with CRC.
  • Built-in temperature sensor and low battery indicator.
  • Module Size:16*16mm.


APPLICATIONS

  • Automated Meter Reading.
  • Home and Building Automation.
  • Wireless Alarm and Security Systems.
  • Industrial Monitoring and Control



Useful Link:

Application noteDemo code for RFM92WROHSFCC,ETSI.

RFM95WDemo codeRoHS report FCC test report,  ETSI test report.

DatasheetRFM92WRFM95W.


User guide
: RFM9x StartKit Tool Application User Guide

Product Details
DWM18120401
3000 Items
