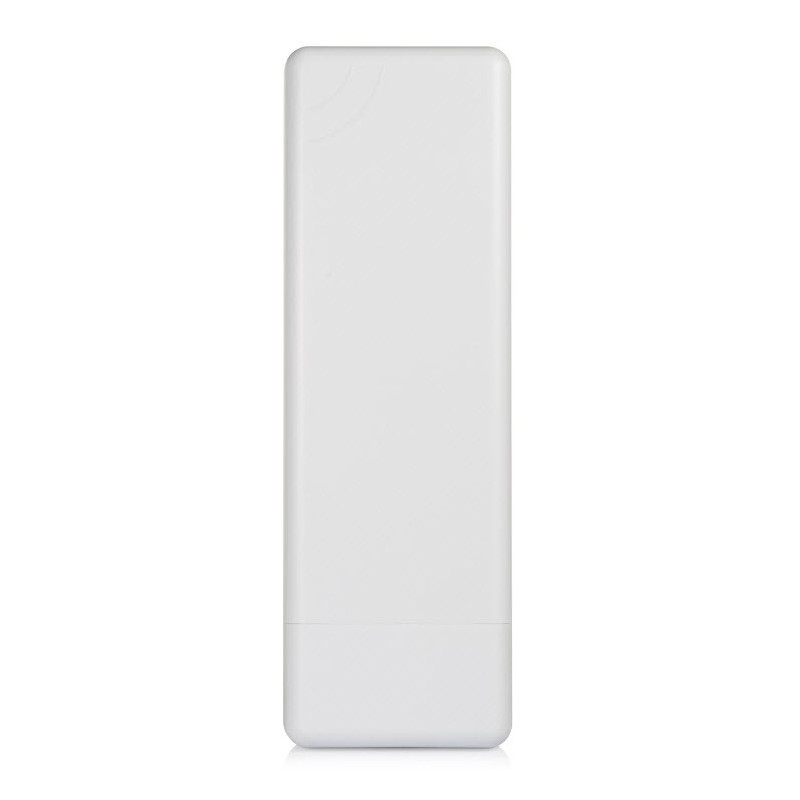

OLG01-N IOT LoRa Gateway single channel outdoor Water proof Gateway

DWM19011502
Rating

The OLG01-N is an Water proof outdoor setting open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular.

Center frequency

Volume discounts

Quantity Discount You Save
10 $2.00 Up to $20.00
50 $3.00 Up to $150.00
100 $5.00 Up to $500.00
$69.00
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

OLG01-N is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.

OLG01-N has rich internet connection method such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

OLG01-N can support the LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from OLG01, OLG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.

OLG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.

Except LoRaWAN mode, OLG01-N can support mutiply working mode such as: MQTT mode, TCP/IP Client mode to fit different requirement for IoT connection.

OLG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the OLG01-N is only of its 1/4 or less cost. This make the OLG01-N very suitable to set up small scale LoRa network.

Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Flexible protocol to connect to IoT servers
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Internet connection via LAN, WiFi, 3G or 4G
  • Failsafe design provides robustly system
  • 1 x SX1276/SX1278 LoRa module
  • Limited support in LoRaWAN/ Support Private LoRa protocol
  • Support upto 300 nodes
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa: 5~10 km. Density Area:>500m



Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc
  • LoRaWAN Reapeter



Specifications:

Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB



Cellular 4G LTE (optional):

  • Quectel EC25 LTE module (Click the link and choose the right model when order)
  • Micro SIM Slot
  • Internal 4G Antenna + External 4G Sticker Antenna.
  • Up to 100Mbps downlink and 50Mbps uplink data rates
  • Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems



4G Cellular Option

EC25-AU: with Quectel EC25-AU for Latin America, New Zeland, Taiwan

EC25-E:with Quectel EC25-E for EMEA, Korea, Thailand, India.

EC25-A: with Quectel EC25-A for North America/ Rogers/AT&T/T-Mobile.

EC25-Jwith Quectek EC25-J for Japan, DOCOMO/SoftBank/ KDDI

Interfaces:

  • 10M/100M RJ45 Ports x 2
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • 1 x LoRa Interface
