Preferential price Special offer Sensors for Internet of things Weather station suite.
The 9 set contains:
1. Wind speedSensor, white box size 15X16.5X8CM
2. Wind directionsensorWhite box size 18.5X14X6.5CM
3.rain sensorWhite box size 9.5X15.5X6.5CM
4, stainless steel vertical pole 1, single length 30CM
5, bar length 29CM
6. Rainfall support
8. Stainless steel hoop
9. Loosening screws
All single package size 20X18X30CM.

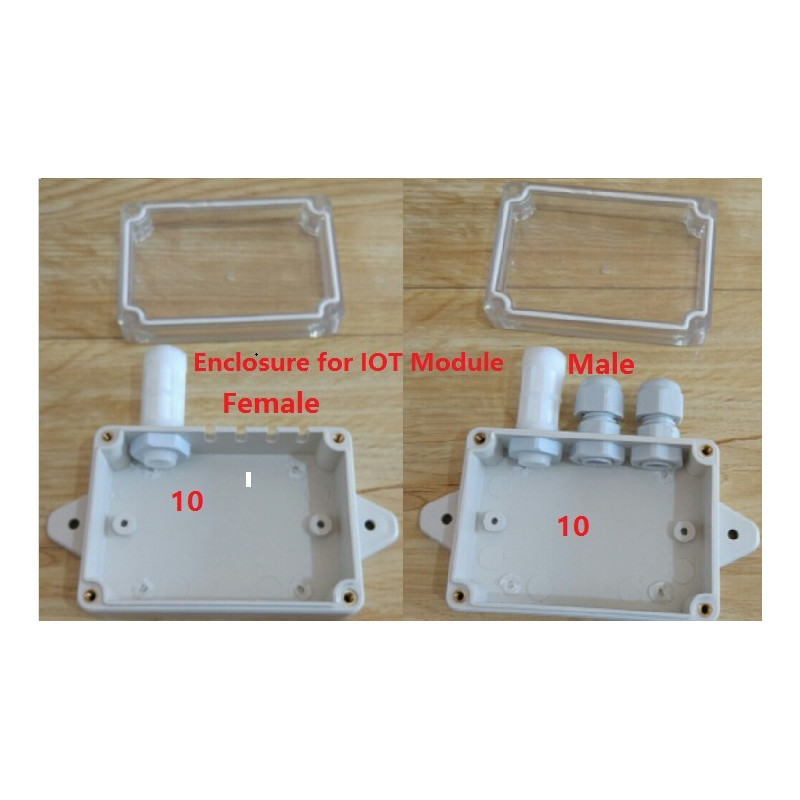

10.Enclosure for IOT module
About the Secondary development:
Wind speed is passive switch quantity, wind speed sensor, turn 1 turns, 2 pulse =2HZ.
Formula for wind speed: m/s=wind speed Hz * 0.34
Rainfall is passive switch, rain bucket reverses once =0.33mm
Wind direction: resistance network, equivalent to stepping potentiometer, the user connected to a 10K pull-up resistance voltage, SCM AD can detect the voltage.
The wind direction is marked with NSWE direction.
