The Dragino PS-LB-T or PS-LB-I sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

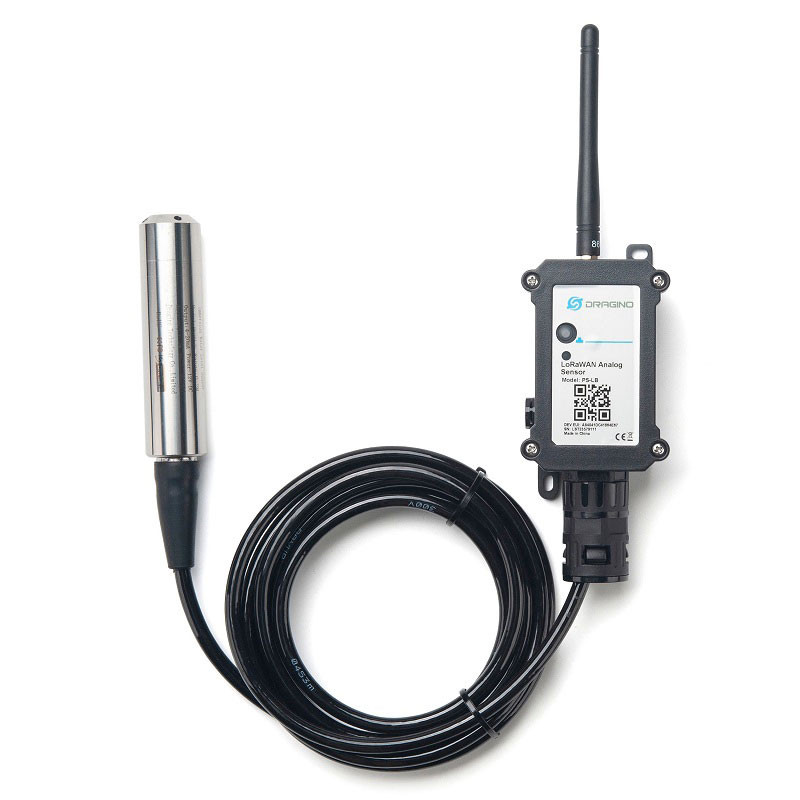

The Dragino PS-LB-I sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.
The PS-LB series sensors include Immersion Type and Thread Installation Type (PS-LB-T), it supports different pressure range which can be used for different measurement requirement.
The LoRa wireless technology used in PS-LB-I allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
PS-LB-I supports BLE configure and wireless OTA update which make user easy to use.
PS-LB-I is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.
Each PS-LB-I is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
LoRaWAN 1.0.3 Class A
Ultra-low power consumption
Measure air / gas or water pressure
Different pressure range available
Thread Installation Type or Immersion Type
Monitor Battery Level
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Support Bluetooth v5.1 and LoRaWAN remote configure
Support wireless OTA update firmware
Uplink on periodically
Downlink to change configure
8500mAh Battery for long term use
Controllable 3.3v,5v and 12v output to power external sensor
Micro Controller:
MCU: 48Mhz ARM
Flash: 256KB
RAM: 64KB
Common DC Characteristics:
Supply Voltage: 2.5v ~ 3.6v
Operating Temperature: -40 ~ 85°C
Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz,Band 2 (LF): 410 ~ 528 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity
Current Input Measuring :
Range: 0 ~ 20mA
Accuracy: 0.02mA
Resolution: 0.001mA
Voltage Input Measuring:
Range: 0 ~ 30v
Accuracy: 0.02v
Resolution: 0.001v
Li/SOCI2 un-chargeable battery
Capacity: 8500mAh
Self-Discharge: <1% / Year @ 25°C
Max continuously current: 130mA
Max boost current: 2A, 1 second
Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Immersion Type, Probe IP Level: IP68
Measuring Range: Measure range can be customized, up to 100m.
Accuracy: 0.2% F.S
Long-Term Stability: ±0.2% F.S / Year
Storage temperature: -30℃~80℃
Operating temperature: 0℃~50℃
Material: 316 stainless steels
Liquid & Water Pressure / Level detect.
Ixx: lmmersion Version -xx meter cable
Pls Leave a message or send a note to sales@dwmzone.com with the cable length which out of the options.
YY: The default frequency band
AS923: LoRaWAN AS923 band
AU915: LoRaWAN AU915 band
EU433: LoRaWAN EU433 band
EU868: LoRaWAN EU868 band
KR920: LoRaWAN KR920 band
US915: LoRaWAN US915 band
IN865: LoRaWAN IN865 band
CN470: LoRaWAN CN470 band
