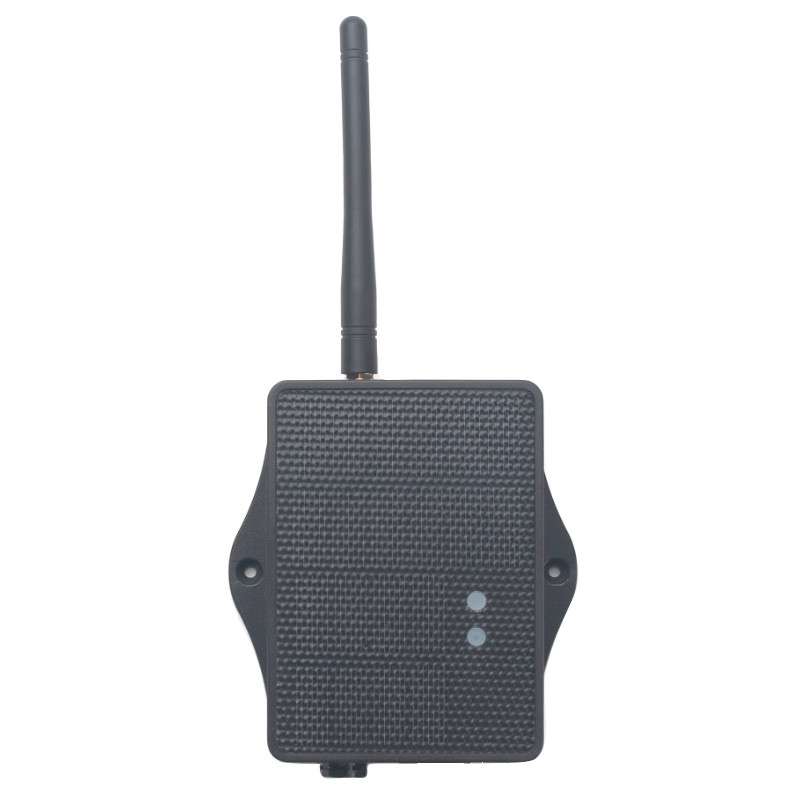

The BH01-LS Solar Powered BLE to LoRaWAN Hub is an edge communication node device designed for cold chain warehouse monitoring, smart agricultural environment monitoring, asset tracking and urban infrastructure health management.
Dragino BH01-LS BLE to LoRaWAN Hub is an edge communication node device designed for loT applications. It uses the BLE Bluetooth module to periodically scan and collect data from surrounding Bluetooth temperature and humidity sensors (such as BCN02, iBeasons or third-party BLE sensors), and then uses the LoRaWAN protocol to transmit the data over long distances to the cloud platform, achieving seamless connection between Bluetooth devices and low-power wide area networks.
BH01-LS is a BLE to LoRaWAN Hub which can turn BLE devices to LoRaWAN devices. This feature can help system intergrator has widely choice in sensor selection and simplify the network structure.
It is suitable for cold chain warehouse monitoring, smart agricultural environment monitoring, asset tracking and urban infrastructure health management. It combines the fexibility of Bluetooth and the wide coverage of LoRaWAN. Compared with wifi connection, it can siginifcantly reduce the deployment cost of the Internet of Things.
BH01-LS has a built-in BLE module , user can configure the sensor remotely via Mobile Phone. It also support OTA upgrade via private LoRa protocol for easy maintaining.
BH01-LS is solar powered by Solar panel + 3000mAh Li-ion battery.
LoRaWAN 1.0.3 Class A
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Ultra-low power consumption
Data collcetion: Bluetooth tags monitor environmental parameters in real time and upload data to the Hub via BLE protocol
Combines BLE’s short-range precision with LoRaWAN’s Long range transmission
Monitor Battery Level
Support Bluetooth v5.1 and LoRaWAN remote configure
Support wireless OTA update firmware
Uplink on periodically
Downlink to change configure
Solar panel + 3000mAh Li-ion battery
Cold Chain Logistics
Smart Factory Monitoring
Warehouse Monitoring
Greenhouse Mornitoring
Bluetooth Sensor Tag Specification:
Bluetooth version: Bluetooth LE 5.1 protocol
Shell material: PET composite plastic bag (heat sealed)
Temperature range: -40°C ~ +85°C, ±0.3°C
Waterproof level: IP67
Battery capacity: 600mAh
Working temperature: -40°C ~ +60°C
Battery specifcation: CR2450
Data storage: 512 records
Battery life: 3 years (varies with the transmission powerand broadcast
frequency settings)
Transmit power: -19.5dBm ~ +2.5dBm (confgurable)
Broadcast frequency: 500ms (confgurable)
Sampling frequency: 5min/time (confgurable)
Broadcast power consumption: 22uA (varies with the transmission
power and broadcast frequency settings)
Broadcast mode: Custom Sensor broadcast
Broadcast distance Distance: 100m (varies with thetransmission
power setting)
Confguration APP: nRF connect (Android / IOS)
Bluetooth version: Bluetooth LE 5.3 protocol
Casing material: PC material
Temperature range: 0°C ~ +85°C, ±0.2°C
Waterproof level: IP65
Battery capacity: 1100mAh
Working temperature: 0°C ~ +85°C
Battery specifcation: AAA LR03 x2
Battery life: 3 years (varies with the transmission powerand broadcast
frequency settings)
Transmit power: -20dBm ~ +4dBm (confgurable)
Broadcast frequency: 1000ms (confgurable)
Humidity range: 0~100%RH, ±2%RH
Broadcast power consumption: 34uA (varies with the transmission
power and broadcast frequency settings)
Supported system: Android 4.3 / IOS7.0 and above
Broadcast mode: Custom Sensor broadcast
Broadcast distance Distance: 100m (varies with thetransmission
power setting)
Confguration APP: nRF connect (Android / IOS)
Supported system: Android 4.3 / IOS7.0 and above
Package Includes:
BH01-LS Bluetooth to LoRaWAN Hub
XX: The default frequency band
AS923: LoRaWAN AS923 band
AU915: LoRaWAN AU915 band
EU433: LoRaWAN EU433 band
EU868: LoRaWAN EU868 band
KR920: LoRaWAN KR920 band
US915: LoRaWAN US915 band
IN865: LoRaWAN IN865 band
CN470: LoRaWAN CN470 band
