Reference: DWM15101001
Brand: Semtech
RFM50 module series’ design is based on the high performance RF50 SoC chip, It include a CIP-51 core‘ MCU and 100mW transceiver. It operate at 433/470/868/915 MHz ISM band, comply with FCC, ETSI regulation.

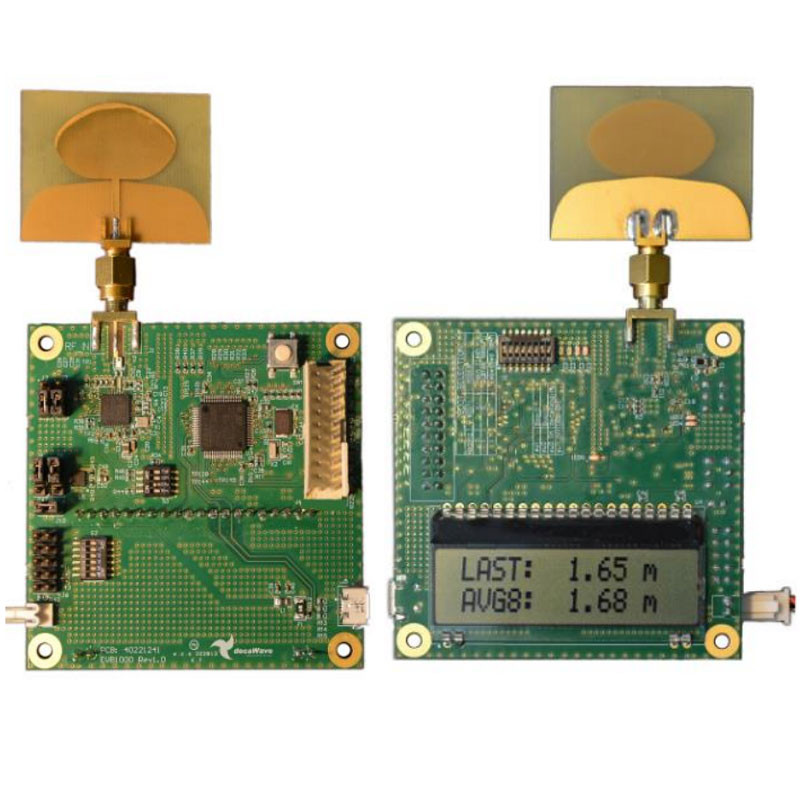

The EVK1000 is Decawave's Two-Way Ranging Evaluation Kit made of the DW1000 IEEE802.15.4-2011 UWB-compliant wireless transceiver IC and STM32F105 ARM Cortex M3.
The EVK1000 is Decawave's Two-Way Ranging Evaluation Kit made of 2 EVB1000 evaluation boards, each incorporating the DW1000 IEEE802.15.4-2011 UWB-compliant wireless transceiver IC and STM32F105 ARM Cortex M3.
ULTRA-ACCURATE
Centimeter accuracy that's 100x better than WiFi or Bluetooth
ULTRA-RELIABLE
High immunity to multipath and interference
REAL TIME
Low latency that's 50x faster than GPS
AFFORDABLE
Low power, low cost, low processing
HIGH DATA RATE
Ability to manage and process extensive data
LONG RANGE
Up to 290m range reduces infrastructure required to deploy systems
HIGH DENSITY
High tag densities enable lower infrastructure implementation and costs
LOW POWER
Allows operation from batteries for long periods
2 boards with DW1000 chip, MCU and antennae
Two-way ranging software (source code)
PC application
Evaluate range, accuracy, precision, multi-path/blocking immunity using TWR
Tweak RF parameters (channel, preamble, data rate)
Log channel impulse response data
Modify example software, re-flash the boards
| EVK1000 Product Brief | Product Brief for the EVK1000 | 2.0 | download |
| EVK1000 User Manual | User Manual for the EVK1000 | 1.13 | download |
| EVB1000 Schematic | Schematic for the EVB1000 | 0.04 |
