Reference: DWM15101001
Brand: Semtech
RFM50 module series’ design is based on the high performance RF50 SoC chip, It include a CIP-51 core‘ MCU and 100mW transceiver. It operate at 433/470/868/915 MHz ISM band, comply with FCC, ETSI regulation.
DWM-RTC1101 is built by the IT RF chipset CC1101 which max power output is +10dBm have three versions 433MHz, Free band SRD Wireless Transceiver Module.
DWM-RTC1101 is built by the IT RF chipset CC1101 which max power output is +10dBm have three versions 433MHz, Free band SRD Wireless Transceiver Module.
Remote Keyless Entry Systems Passive Entry/Passive Start Systems
Vehicle Service Links Garage Door Opener
TPMS Systems
RF Performance（The temperature 25℃，VCC 3.3V）
|
Num |
Characters |
Parameters |
Unit |
||
|
|
|
MIN |
TPY |
MAX |
|
|
1 |
Frequency range |
250 |
433.92 |
1000 |
MHz |
|
2 |
Power Output |
-30 |
|
10 |
dBm |
|
3 |
Sensitivity |
|
-114 |
|
dBm |
|
4 |
Modulation |
GFSK |
2-FSK |
OOK |
MSK |
|
5 |
Data Rate |
1.2 |
|
500 |
Kbps |
|
6 |
Harmonic Power |
-45 |
—— |
-35 |
dBm |
|
7 |
Transmission Range |
500 |
|
600 |
M |
|
8 |
OOK，Sensitivity |
|
-108 |
|
dBm |
|
9 |
OOK，Data rate |
|
|
100 |
Kbps |
|
10 |
Standby Current |
|
|
0.9 |
MHz |
|
11 |
Crystal Precision |
|
10 |
|
PPM |

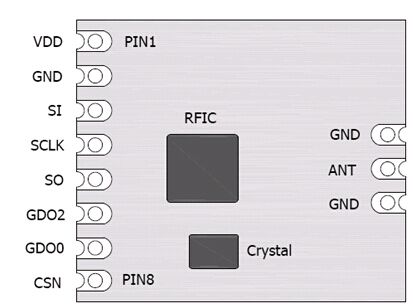

Pin Definition for module
PIN Map for RTC1101 module.
|
Pin NUM |
DEF |
Function Description |
Note |
|
1 |
VDD |
Power Supply 3.3V |
RF VDD |
|
2 |
GND |
GND |
|
|
3 |
SI |
MOSI （SPI） |
|
|
4 |
SCLK |
CLOCK （SPI） |
|
|
5 |
SO |
MISO (SPI) |
|
|
6 |
GDO2 |
Digital output pin for general use: • Test signals • FIFO status signals • Clear channel indicator • Clock output, down-divided from XOSC • Serial output RX data |
|
|
7 |
GDO0 |
Digital output pin for general use: • Test signals • FIFO status signals • Clear Channel Indicator • Clock output, down-divided from XOSC • Serial output RX data • Serial input TX data Also used as analog test I/O for prototype and production testing |
|
|
8 |
CSN |
CS (SPI) |
|
|
9 |
ANT |
Antenna interface, the standard 50 Ω antenna |
|
