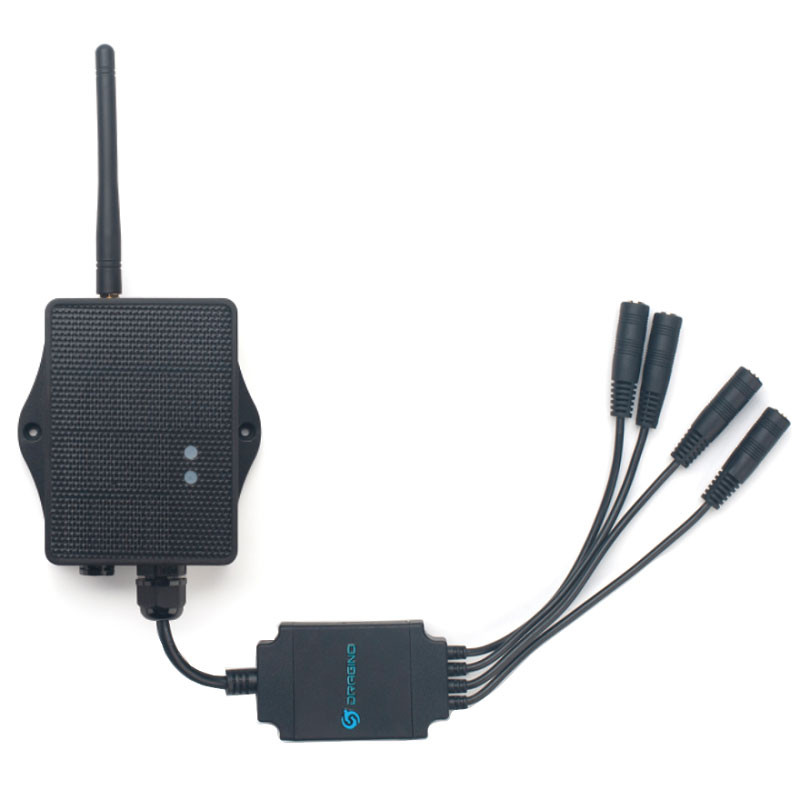

The CS01-LS is a solar-powered 4-channel current Sensor Converter. It can be used to monitor the machine's running status and analyze power consumption trends.
The CS01-LS is a solar-powered 4-channel current Sensor Converter. It can convert the reading from the current sensors and upload it to the IoT server via the LoRaWAN Network.
CS01-LS can be used to monitor the machine's running status and analyze power consumption trends.
The CS01-LS supports a maximum of 4 current sensors. The current sensors are detachable and can be replaced with different scales.
CS01-LS supports BLE configure and wireless OTA update, which makes user easy for users to use.
CS01-LS is powered by a Solar panel + 3000mAh Li-ion battery, and it is designed for long-term use up to several years.
LoRaWAN 1.0.3 Class A
Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Ultra-low power consumption
Supports a maximum of 4 current sensors
Support various current sensor Ratio: 100A/50mA, 300A/50mA, 600A/50mA
Monitor the machine's running status
Analyze power consumption trends
Current Alarm
Uplink on periodically
Downlink to change the configuration
Support BLE and LoRaWAN remote configuration
Support wireless OTA update firmware
Solar panel + 3000mAh Li-ion battery
Common DC Characteristics:
Supply Voltage: Built-in Battery, 2.5V ~ 3.6V
Operating Temperature: -40 ~ 85°C
SCT013G-D-100:
Split-core current transformer
Spec: 100A/50mA
φ16mm Aperture
SCT024-300:
Split-core current transformer
Spec: 300A/50mA
φ24mm Aperture
SCT036-600:
Split-core current transformer
Spec: 600A/50mA
φ36mm Aperture
Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity
Solar panel + 3000mAh Li-ion battery
Capacity: 3000mAh
Self-Discharge: <1% / Year @ 25°C
Max continuous current: 130mA
Max boost current: 2A, 1 second
Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
CS01-LS LoRaWAN 4 Channels Current Sensor Converter x 1
XX: the default frequency band
EU433: Default frequency band EU433
CN470: Default frequency band CN470
EU868: Default frequency band EU868
IN865: Default frequency band IN865
KR920: Default frequency band KR920
AS923: Default frequency band AS923
AU915: Default frequency band AU915
US915: Default frequency band US915
SCT013G-D-100: 100A/50mA
SCT024-300: 300A/50mA
SCT036-600: 600A/50mA
