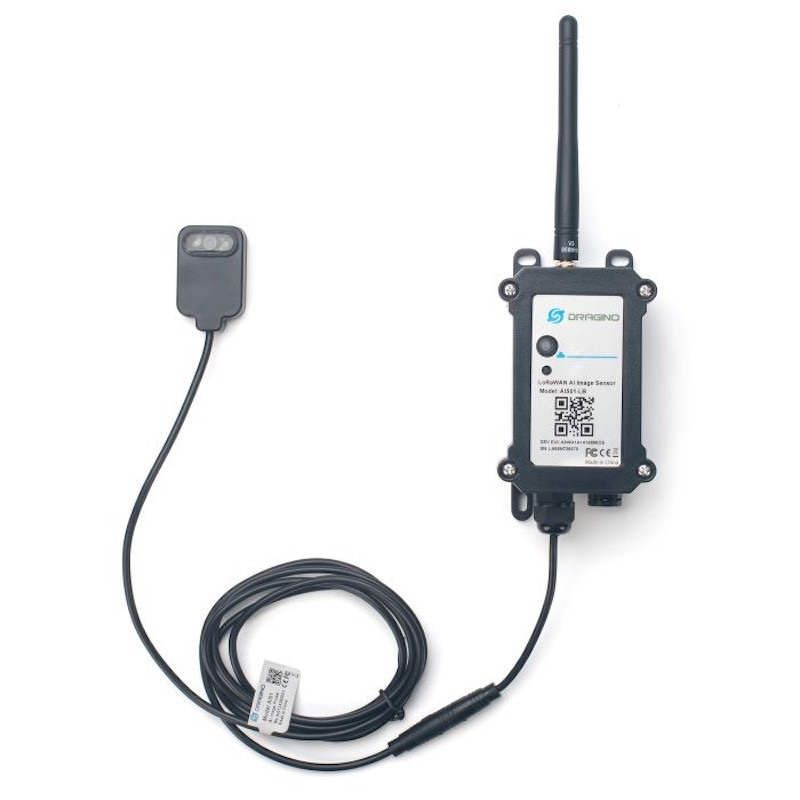

AIS01-LB is a LoRaWAN AI Image End Node which is pre-trained to support image recognized of water meter, gas meter and power meter.
AIS01-LB is a LoRaWAN AI Image End Node . AIS01-LB has a camera and AI processor in the probe. It can take photo, analyze the photo to get digital reading and send the info to IoT server via LoRaWAN Network.
AIS01-LB is pre-trained to support image recognized of water meter, gas meter and power meter . It can be trained to support more image recognized for different application.
AIS01-LB can send the digital reading after recognized and it can also send the original photo via LoRaWAN as well.
AIS01-LB is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateway.
LoRaWAN v1.0.3 Class A protocol
Low power consumption
AI Image Sensor
Send image to IoT server
Recognize digits from Image and send data to IoT server
Trained for common reading for Water Meter, Gas Meter, Power Meter
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
Support Interrupt uplink
Support Bluetooth v5.1 and LoRaWAN remote configure
Support wireless OTA update firmware
AT Commands to change parameters
Uplink on periodically
Downlink to change configure
8500mAh Li/SOCl2 Battery
Common DC Characteristics:
Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
Operating Temperature: -40 ~ 85°C
Mono:
black & white
Angle:
110°
Image size:
64kb
Image resolution:
640x480
Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity
Li/SOCI2 un-chargeable battery
Capacity: 8500mAh
Self-Discharge: <1% / Year @ 25°C
Max continuously current: 130mA
Max boost current: 2A, 1 second
Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Gas Meter
Water Meter
Electricity Meter
Package Includes:
AIS01-LB LoRaWAN AI Image End Node
XX : the default frequency band
EU433: Default frequency band EU433
CN470: Default frequency band CN470
EU868: Default frequency band EU868
IN865: Default frequency band IN865
KR920: Default frequency band KR920
AS923: Default frequency band AS923
AU915: Default frequency band AU915
US915: Default frequency band US915
Datasheet
