DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module Maximize

DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module

DWM-VT-CC1120 433MHz /868MHz /915MHz Narrow-Band TI CC1120 wireless Transceiver module  is based  TI Chipcon RF Transceiver CC1120,it’s a small size and ultra low power UHF wireless module.

More details

1500 Items in stock

No reward points for this product.


ProductFrom (qty)Discount
DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module100 -$ 1.00
DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module50 -$ 0.80
DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module10 -$ 0.50
DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module6 -$ 0.30

30 other products in the same category:

Previous
Next
DWM-VT-CC1120 433MHz /868MHz /915MHz TI CC1120 Narrow-Band wireless Transceiver module <p>DWM-VT-CC1120 433MHz /868MHz /915MHz Narrow-Band TI CC1120 wireless Transceiver module  is based  TI Chipcon RF Transceiver CC1120,it’s a small size and ultra low power UHF wireless module.<span style="font-size: 11px;">CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 164-192 MHz, 410-480 MHz and 820-960 MHz. The MAX RF output power can be set as high as +16dBm, with data rate as high as 200Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your development time.    </span></p> <h1><span>Features</span></h1> <p>- 868MHz wireless transceiver, Frequency range:820~960MHz</p> <p>- Programmable baseband modulator with 2-FSK/2-GFSK/4-FSK/4-GFSK/MSK/OOK/ASK</p> <p>- Programmable output power from -11 to +16dBm</p> <p>- High receiver sensitivity down to -121dBm while 1.2kbps data rate</p> <p>- Programmable data rate 1.2~200Kbps</p> <p>- Low power consumption and operating supply voltage:2.0~3.6V DC</p> <p>- Point to point and point to multi-point communication.</p> <p>- Support carrier sense and digital RSSI output.</p> <p>- Separate 128-byte RX and TX FIFOs</p> <p>- High stability and industrial reliability</p> <p>- Small dimension:23.05mm×15.06mm×1.80 mm</p> <h1><span>Applications</span></h1> <p>- Wireless Metering and Wireless Smart Grid (AMR and AMI) </p> <p>- Logistics Tracking System, Warehouse patrol, Electronic label</p> <p>- Industrial monitoring and control</p> <p>- AMR – Automatic Meter Reading</p> <p>- Home and building automation</p> <p>- Consumer Electronics products of wireless control</p> <p>- Wireless alarm and security systems</p> <p>- Wireless sensor networks</p> <h1><span>General Characteristics</span></h1> <p>Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.</p> <table style="width: 485px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="188" /> <col width="178" /> <col width="119" /> </colgroup> <tbody> <tr> <td class="xl111" width="188" height="24">Parameter</td> <td class="xl111" width="178">Type</td> <td class="xl111" width="119">Condition/Note</td> </tr> <tr> <td class="xl110" width="188" height="23">Operating supply voltage</td> <td class="xl110" width="178">DC 2.0~3.6V</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="18">Frequency range</td> <td class="xl110" width="178">820-960MHz</td> <td class="xl110" width="119">Programmable</td> </tr> <tr> <td class="xl110" width="188" height="23">Frequency accuracy</td> <td class="xl110" width="178">±10ppm</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="35">Modulation format</td> <td class="xl110" width="178">2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK</td> <td class="xl110" width="119">Programmable</td> </tr> <tr> <td class="xl110" width="188" height="20">Transmit power</td> <td class="xl110" width="178">-11~+16dBm</td> <td class="xl110" width="119">Programmable</td> </tr> <tr> <td class="xl110" width="188" height="23">TX current consumption</td> <td class="xl110" width="178">&lt;65mA</td> <td class="xl110" width="119">Po=16dBm</td> </tr> <tr> <td class="xl110" width="188" height="18">Receiver sensitivity</td> <td class="xl110" width="178">-121dBm</td> <td class="xl110" width="119">1.2kbps DEV=4KHz RX BW=25KHz</td> </tr> <tr> <td class="xl110" width="188" height="25">RX current consumption</td> <td class="xl110" width="178">&lt;22mA</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="26">Sleep State current consumption</td> <td class="xl110" width="178">&lt;1uA</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="25">Data rate</td> <td class="xl110" width="178">0~200Kbps</td> <td class="xl110" width="119">Programmable</td> </tr> <tr> <td class="xl110" width="188" height="27">Communication distance</td> <td class="xl110" width="178">1800m</td> <td class="xl110" width="119">1.2kbps</td> </tr> <tr> <td class="xl110" width="188" height="32">Antenna impedance</td> <td class="xl110" width="178">50ohm</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="32">Operating temperature</td> <td class="xl110" width="178">-40~+85 °C</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="24">Storage temperature range</td> <td class="xl110" width="178">-40~+125°C</td> <td class="xl110" width="119"> </td> </tr> <tr> <td class="xl110" width="188" height="30">Dimension</td> <td class="xl110" width="178">23.05 mm×15.06 mm×1.8mm</td> <td class="xl110" width="119">See more in PCB description</td> </tr> </tbody> </table> <p> </p> <h1>Pin Configuration</h1> <p><img title="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Pin-Configuration" src="http://dwmzone.com/img/cms/dwmzone-CC1120-433MHz%20-868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Pin-Configuration.png" alt="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Pin-Configuration" width="544" height="344" /></p> <table style="width: 500px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="94" /> <col width="118" /> <col width="288" /> </colgroup> <tbody> <tr> <td class="xl111" width="94" height="24">Pin name </td> <td class="xl111" width="118">Pin type </td> <td class="xl112" width="288">Description</td> </tr> <tr> <td class="xl109" height="19">VCC </td> <td class="xl109">Power(Analog) </td> <td class="xl109">power supply DC 2.0-3.6V</td> </tr> <tr> <td class="xl109" height="19">GND </td> <td class="xl109">Ground</td> <td class="xl109">Ground</td> </tr> <tr> <td class="xl109" height="19">CS_N </td> <td class="xl109">Digital In </td> <td class="xl109">Chip select, active low</td> </tr> <tr> <td class="xl109" height="19">GDIO0 </td> <td class="xl109">Digital I/O </td> <td class="xl109">Data output<span class="font7">,</span><span class="font6">configuration by register</span></td> </tr> <tr> <td class="xl109" height="19">SO/GPIO1 </td> <td class="xl109">Digital I/O </td> <td class="xl109">Data output<span class="font7">(</span><span class="font6">SPI</span><span class="font7">)</span><span class="font6">or GPIO</span></td> </tr> <tr> <td class="xl109" height="19">SCLK </td> <td class="xl109">Digital In</td> <td class="xl109">Clock input<span class="font7">(</span><span class="font6">SPI</span><span class="font7">)</span></td> </tr> <tr> <td class="xl109" height="18">SI </td> <td class="xl109">Digital In </td> <td class="xl110" width="288">Data input<span class="font7">(</span><span class="font6">SPI</span><span class="font7">)</span></td> </tr> <tr> <td class="xl109" height="19">GDIO2 </td> <td class="xl109">Digital I/O </td> <td class="xl109">Data input/output<span class="font7">,</span><span class="font6">configuration by register</span></td> </tr> <tr> <td class="xl109" height="19">GDIO3 </td> <td class="xl109">Digital I/O </td> <td class="xl109">Data input/output<span class="font7">,</span><span class="font6">configuration by register</span></td> </tr> <tr> <td class="xl109" height="19">RESET_N </td> <td class="xl109">Digital In </td> <td class="xl109">Reset<span class="font7">,</span><span class="font6">active low</span></td> </tr> <tr> <td class="xl109" height="19">ANT </td> <td class="xl109">Antenna port </td> <td class="xl109">Impedance 50ohm</td> </tr> </tbody> </table> <p><span><br /></span></p> <h1><span>Application</span></h1> <p><span><img title="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Application" src="http://dwmzone.com/img/cms/dwmzone-CC1120-433MHz%20-868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Application.png" alt="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Application" width="586" height="292" /></span></p> <h1><span>Dimension</span></h1> <p><span><img title="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-dimension" src="http://dwmzone.com/img/cms/dwmzone-CC1120-433MHz%20-868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-dimension.png" alt="dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-dimension" width="650" height="404" /></span></p> <p><span>Note</span><span>:</span></p> <p>1. The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.</p> <p>2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.</p> <p>3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.</p> <p>4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.</p> <p>5. The module mount will affect the communication distance.</p>
$ 7.50

DWM-VT-CC1120 433MHz /868MHz /915MHz Narrow-Band TI CC1120 wireless Transceiver module  is based  TI Chipcon RF Transceiver CC1120,it’s a small size and ultra low power UHF wireless module.CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 164-192 MHz, 410-480 MHz and 820-960 MHz. The MAX RF output power can be set as high as +16dBm, with data rate as high as 200Kbps. The module integrated many RF functions thus you can use it conveniently and reducing your development time.

Features

- 868MHz wireless transceiver, Frequency range:820~960MHz

- Programmable baseband modulator with 2-FSK/2-GFSK/4-FSK/4-GFSK/MSK/OOK/ASK

- Programmable output power from -11 to +16dBm

- High receiver sensitivity down to -121dBm while 1.2kbps data rate

- Programmable data rate 1.2~200Kbps

- Low power consumption and operating supply voltage:2.0~3.6V DC

- Point to point and point to multi-point communication.

- Support carrier sense and digital RSSI output.

- Separate 128-byte RX and TX FIFOs

- High stability and industrial reliability

- Small dimension:23.05mm×15.06mm×1.80 mm

Applications

- Wireless Metering and Wireless Smart Grid (AMR and AMI)

- Logistics Tracking System, Warehouse patrol, Electronic label

- Industrial monitoring and control

- AMR – Automatic Meter Reading

- Home and building automation

- Consumer Electronics products of wireless control

- Wireless alarm and security systems

- Wireless sensor networks

General Characteristics

Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.

ParameterTypeCondition/Note
Operating supply voltageDC 2.0~3.6V
Frequency range820-960MHzProgrammable
Frequency accuracy±10ppm
Modulation format2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOKProgrammable
Transmit power-11~+16dBmProgrammable
TX current consumption<65mAPo=16dBm
Receiver sensitivity-121dBm1.2kbps DEV=4KHz RX BW=25KHz
RX current consumption<22mA
Sleep State current consumption<1uA
Data rate0~200KbpsProgrammable
Communication distance1800m1.2kbps
Antenna impedance50ohm
Operating temperature-40~+85 °C
Storage temperature range-40~+125°C
Dimension23.05 mm×15.06 mm×1.8mmSee more in PCB description

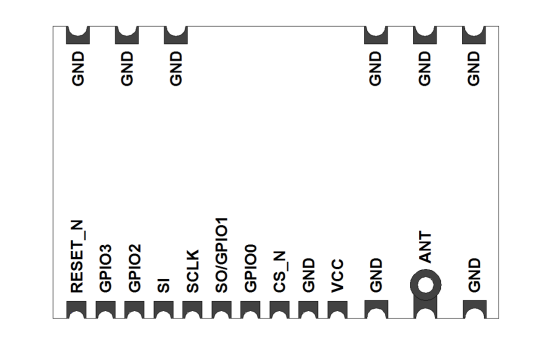

Pin Configuration

dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Pin-Configuration

Pin name Pin type Description
VCC Power(Analog) power supply DC 2.0-3.6V
GND GroundGround
CS_N Digital In Chip select, active low
GDIO0 Digital I/O Data outputconfiguration by register
SO/GPIO1 Digital I/O Data outputSPIor GPIO
SCLK Digital InClock inputSPI
SI Digital In Data inputSPI
GDIO2 Digital I/O Data input/outputconfiguration by register
GDIO3 Digital I/O Data input/outputconfiguration by register
RESET_N Digital In Resetactive low
ANT Antenna port Impedance 50ohm


Application

dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-Application

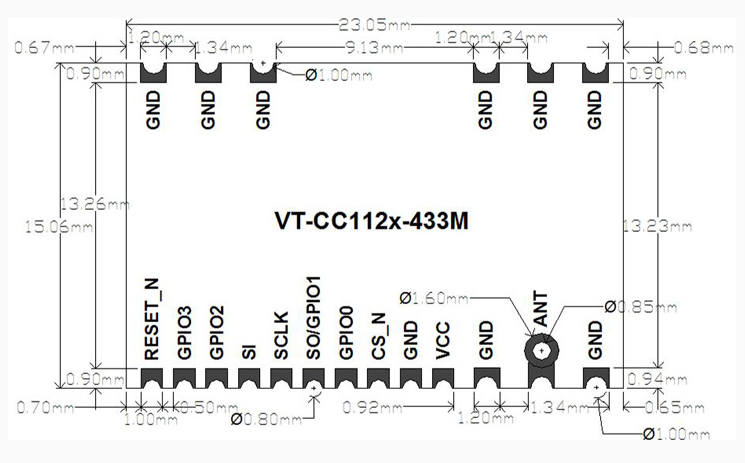

Dimension

dwmzone-CC1120-433MHz -868MHz-915MHz-Narrow-Band-TI-CC1120-wireless-Transceiver-module-dimension

Note

1. The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.

2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.

3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.

4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.

5. The module mount will affect the communication distance.
