Reference: DWM14042301
Spring antenna is specialized for wireless data transmission. This antenna with good performance of V.S.W.R, small size design, easily installation, stable performance and good anti-shock and anti-aged compatible for Hoperf Modules.
Reference: DWM14032902
SMA rf antenna connector is pallets copper gold andexternal thread needle sma pallets plate rf connector.
Reference: DWM14032102
Whip antenna for sub-1 GHz, 433MHz,868MHz and 915MHz with SMA male connectors.it's used with wireless module recommanded by Hoperf .
Reference: DWM14042401
SMA RG178 extension female cable for GPS, GSM antenna,RF module, SMA cable,IPEX to SMA jumper cable.
Reference: DWM18032302
USD3.0/pcs MOQ100pcs LoRa Antenna designed for Lora application which required for outdoor waterproof highgain and work at ISM free band like 433MHz /868MHz /915MHz SMA Male Whip antenna.
Reference: DWM16121503
DWM-TLB-3.0QB SUB-1GHz / 2.4GHz Whip antenna with a Collapsible SMA male connectors.Which are available for 433MHz,868MHz.915MHz and 2.4GHz..
Reference: DWM17111002
LoRa Antenna-433MHz High Gain internal aerial piamater FPC Antenna with IPEX connctor.
Reference: DWM15101001
Brand: Semtech
RFM50 module series’ design is based on the high performance RF50 SoC chip, It include a CIP-51 core‘ MCU and 100mW transceiver. It operate at 433/470/868/915 MHz ISM band, comply with FCC, ETSI regulation.

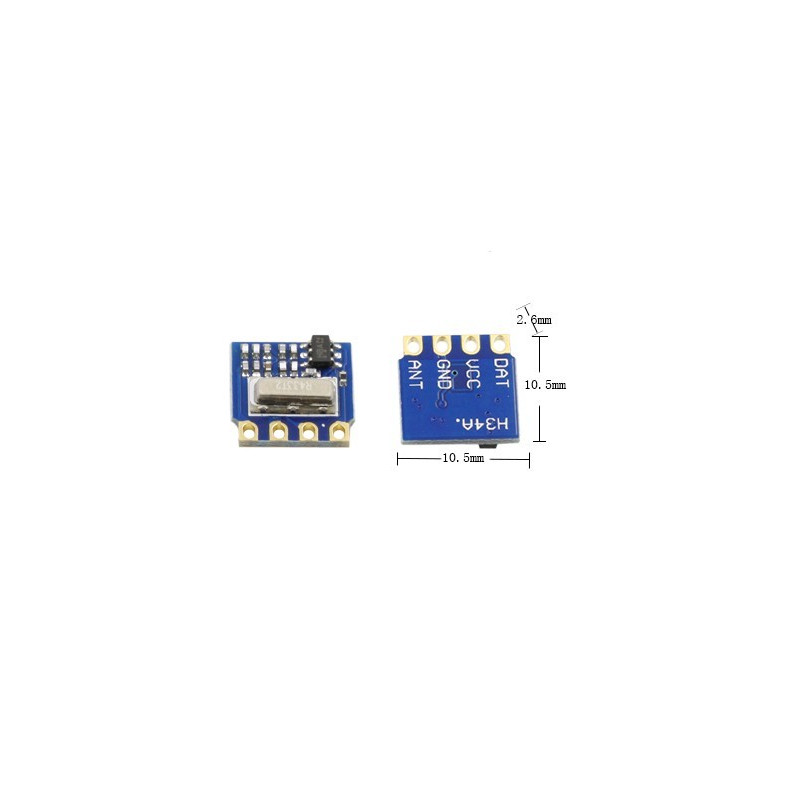

DWM-H34B 315MHz /433MHz is a tunning free,Low cost Well integrated ASK /OOK Transmitter RF module.Power supply range is 2V-4.2V is better for CELL Coin battery.
DWM-H34B 315MHz /433MHz is a tunning free,Low cost Well integrated ASK /OOK Transmitter RF module.It consists brand new RFIC,Features small size,High sensitivity,low power consumption,Low second harmonic and is FCC,CE ROSH approval,DWM-H34B is perfect replacement for tradional super-regenerative and super heterodyne solution.
| Size | 10.5*10.5*2.6 mm |
| Frequency | 315/433Mhz(optional) |
| Modulation | ASK/OOK |
| Voltage | 2-4.2v(longest distance 4v) |
| Power Comsumption | 7mA @3V |
| Max Power Output | 12dBm @3V |
| High Data Rate | Max 4.8kbps |
| Frequency Offset | +/-75KHz |
| Work with Receiver | DWM-LR45A/B, DWM-H3V4F,DWM-H3V3E |
RC Toy control
Remote controller
Alarm and security
RC Switch
Anti-Lost Alarm
Anti-Theif Alarm
Home Automation
Reference: DWM14032102
Whip antenna for sub-1 GHz, 433MHz,868MHz and 915MHz with SMA male connectors.it's used with wireless module recommanded by Hoperf .
Reference: DWM14042301
Spring antenna is specialized for wireless data transmission. This antenna with good performance of V.S.W.R, small size design, easily installation, stable performance and good anti-shock and anti-aged compatible for Hoperf Modules.
Reference: DWM14060901
Multilayer Chip Antenna for 433 /868 /916MHz Wireless rf module.
Reference: DWM15080803
Customized 315MHz /433MHz /868MHz /915MHz Wire antenna.
Reference: DWM16120601
DWM-H34A 315MHz /433MHz is a tunning free,Low cost Well integrated ASK /OOK Transmitter RF module.
Reference: DWM18032301
Brand: Semtech
$2.45/pcs RFM69CW / RFM69HCW MOQ100pcs SX1231H the core chipset is SX1231 /SX1231H which is from semtech., including the 433MHz,868MHz and 915MHz.
Reference: DWM16012602
DWM-RF4432 is 433MHz /868MHz /915MHz ISM Free band adopts Silicon Lab Si4432 RF chip and Hoperf RFM22B +20dBm wireless transceivers module.
Reference: DWM21032107
Brand: Semtech
DWM-N419 Semtech SX1272 Lora SPI Transeiver Module with Small size SMD package and support 868MHz and 915MHz LoRa transceiver wilreless module.
Reference: DWM21030906
Brand: Semtech
RFM69W are built-in by SX1231 which is ISM Free band MAX power output 13dBm transceiver module capable of operation over a wide frequency range, including the 433MHz,868MHz and 915MHz.
Reference: DWM15070101
The RFM219SW is an ultra low power, high performance, OOK and (G)FSK receiver for various 300 to 960MHz wireless applications.
Reference: DWM16041401
DWM-RTC1101 is the Small Size(17x11x2.1mm) which built by the TI RF chipset CC1101 which max power output is +10dBm have three versions 433MHz Free band SRD Wireless Transceiver Module.
Reference: DWM21032106
DWM-N532 TI CC1310(or CC1312R, CC1312R7) 30dBm 433MHz /868MHz /915MHz Enhance power SOC RF Transceiver module design consists of a SOC chip with a 10 -10000 meters wireless transmission.
Reference: DWM15011301
Brand: Semtech
The RFM67W is a fully integrated transmitter which can operate in the 434MHz, 868MHz and 915 MHz licence free ISM bands.suited for the European (ETSI EN300-220-1), North American (FCC part 15.231, 15.247 and 15.249) and Japanese (ARIB T-67) regulatory standards.
Reference: DWM21030903
Brand: Semtech
RFM69HCW are built-in by SX1231 which is ISM Free band transceiver module capable of operation over a wide frequency range, including the 433MHz,868MHz and 915MHz.
Reference: DWM16120608
DWM-H5V3D 433MHz is a tunning free,Low cost Well integrated ASK /OOK Transmitter RF module.it's good used to door bell Application.
Reference: DWM23091501
YTX1276/YTX1278 which is based on the SX1276 and SX1278 LoRa chipset which can be option for the different center frequency with 433MHz/ 868MHz/ 915MHz a LoRa Wireless module.
Reference: DWM17083002
Brand: Semtech
USD2.5/pcs RFM69W /RFM69HW MOQ100pcs SX1231H 433MHz /868MHz /915MHz transceiver RF module. the core chipset is SX1231 /SX1231H which is from semtech.
Reference: DWM15010501
Brand: Silicon Labs
The RFM26, RFM26W module is high-performance, low current transceiver covering the sub-GHz frequency bands from 142 to1050 MHz. which is built by Silicon Sub-GHz Wireless ICs Si4463.
Reference: DWM16011802
RF4463F30 is 1W RF Transceiver module embedded with amplifier and LNA circuit,adopts Silicon Lab Si4463 RF chip, which is a highly integrated wireless ISM band transceiver (EzradioPro2).
Reference: DWM18122801
DWM-HC210C CC115L 315MHz /433MHz /868MHz /915MHz Small size Transmitter rf module is a low-cost sub-1 GHz transmitter designed for very low-power wireless appli-cations base on the TI CC115L RF chipset.
Reference: DWM15011201
Brand: Semtech
The RFM68CW is an ultra-low-cost, FSK or OOK transmitter module suitable for operation in the 433, 868 and 915 MHz licence free ISM bands., the RFM68CW may be used without the requirement for configuration via an MCU. However, in conjunction with a microcontroller, the communication link parameters may be re-configured. Including, output power,...
DWM-H34B 315MHz /433MHz is a tunning free,Low cost Well integrated ASK /OOK Transmitter RF module.Power supply range is 2V-4.2V is better for CELL Coin battery.
