DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 Ultra-Low Power Long Range wireless Transceiver module Maximize

DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module

DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 Ultra-Low Power Long Range wireless Transceiver module  is base on the SoC chip CC1310 of Texas Instruments design. It integrated with a high performance RF core, an ARM®Cortex® -M3 controller and a high performance amplifier.

More details

900 Items in stock

$ 7.69

Reduced price!

$ 7.99

» Add to my wishlist

No reward points for this product.


ProductFrom (qty)Discount
DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module100 -$ 1.50
DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module50 -$ 1.20
DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module10 -$ 0.80
DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module6 -$ 0.50

30 other products in the same category:

Previous
Next
DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 SOC Ultra-Low Power Long Range wireless Transceiver module <p><span style="font-size: 11px;">DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 Ultra-Low Power Long Range wireless Transceiver module  is base on the SoC chip CC1310 of Texas Instruments design. It integrated with a high performance RF core, an ARM®Cortex® -M3 controller and a high performance amplifier.</span></p> <h1>Features</h1> <h2> Radio</h2> <p>- Operate Frequency 433/868/915MHz<br />- Modulation: MSK、FSK、GFSK、OOK、ASK、4GFSK、CPM<br />- Sensitivity: -124dBm @Long-Range Mode<br />- Data Rate from 0.625Kbps to 4Mbps<br />- Hardware support FEC, Data Whitening, CRC<br />- Support 802.15.4g<br />- Support LBT and CCA<br />- Support Digital RSSI</p> <h2> Microcontroller</h2> <p>- Powerful ARM® Cortex®-M3<br />- Up to 48MHz Clock Speed<br />- 128KB Flash<br />- 20KB SRAM<br />- 2-Pin cJTAG and JTAG Debugging<br />- Support OTA</p> <h2> Peripherals</h2> <p>- 19 GPIO<br />- 4 Timers (8x16-Bit or 4x32-Bit),Support PWM Each<br />- 12-Bit ADC, 8-Channel<br />- UART、SSI、I2C、I2S<br />- Real-Time Clock (RTC)<br />- AES-128 Security Module<br />- Support 8 Capacitive Sensing Buttons<br />- Integrated Temperature Sensor</p> <h2> Electric Specification</h2> <p>- Voltage Range from 2.4 to 3.8V<br />- Standby: 1uA<br />- Active-Mode RX: 5.5mA<br />- Active-Mode TX: 75mA @ +20dBm</p> <h2> Package</h2> <p>- SMD + DIP<br />- Antenna Interface: SMD + DIP + IPEX Connector</p> <h2>Applications</h2> <p> 433/868/915MHz ISM and SRD Systems<br /> Energy Harvesting Application<br /> Electronic Shelf Label<br /> Long-Range Sensor Application<br /> SmartGrid and Automatic Meter Reading<br /> Wireless Healthcare Application<br /> Industrial Monitoring and Control<br /> Home and Building Automation<br /> Heat Cost Allocators<br /> Wireless Alarm and Security Systems<br /> Wireless Sensor Networks<br /> Active RFID</p> <h1>Pin Configuration</h1> <p><img title="dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-pin-configration" src="http://dwmzone.com/img/cms/dwmzone-DWM-S02C-CC1310-433MHz%20-868MHz%20-915MHz-TI%20-CC1310-Ultra-Low-Power-Long%20-Range-wireless%20-Transceiver-%20module-pin-configration.png" alt="dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-pin-configration" width="511" height="348" /></p> <table style="width: 582px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="72" /> <col width="94" /> <col width="118" /> <col width="298" /> </colgroup> <tbody> <tr> <td class="xl112" width="72" height="20">Pin name </td> <td class="xl112" width="94"> </td> <td class="xl112" width="118">Pin type </td> <td class="xl112" width="298">Description</td> </tr> <tr> <td class="xl112" height="20">No.</td> <td class="xl111">Name</td> <td class="xl110"> </td> <td class="xl110"> </td> </tr> <tr> <td class="xl113" height="19">1</td> <td class="xl110">VCC </td> <td class="xl110">Power </td> <td class="xl110">Voltage Range from 2.4V to 3.8V DC</td> </tr> <tr> <td class="xl113" height="19">2</td> <td class="xl110">GND</td> <td class="xl110">Power </td> <td class="xl110">Ground</td> </tr> <tr> <td class="xl113" height="19">3</td> <td class="xl110">RST</td> <td class="xl110">Digital Input</td> <td class="xl110">Reset, active low. No internal pull-up</td> </tr> <tr> <td class="xl113" height="19">4</td> <td class="xl110">TMS</td> <td class="xl110">Digital I/O</td> <td class="xl110">JTAG TMSC, High drive capability</td> </tr> <tr> <td class="xl113" height="19">5</td> <td class="xl110">TCK</td> <td class="xl110">Digital I/O</td> <td class="xl110">JTAG TCKC</td> </tr> <tr> <td class="xl113" height="19">6</td> <td class="xl110">DIO16/TDO</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, JTAG TDO, High drive capability</td> </tr> <tr> <td class="xl113" height="19">7</td> <td class="xl110">DIO17/TDI</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, JTAG TDI, High drive capability</td> </tr> <tr> <td class="xl113" height="19">8</td> <td class="xl110">DIO26 </td> <td class="xl110">Digital Analog I/O</td> <td class="xl110">GPIO, Sensor Controller, Analog</td> </tr> <tr> <td class="xl113" height="19">9</td> <td class="xl110">DIO27</td> <td class="xl110">Digital Analog I/O</td> <td class="xl110">GPIO, Sensor Controller, Analog</td> </tr> <tr> <td class="xl113" height="19">10</td> <td class="xl110">DIO28</td> <td class="xl110">Digital Analog I/O</td> <td class="xl110">GPIO, Sensor Controller, Analog</td> </tr> <tr> <td class="xl113" height="19">11</td> <td class="xl110">DIO29</td> <td class="xl110">Digital Analog I/O</td> <td class="xl110">GPIO, Sensor Controller, Analog</td> </tr> <tr> <td class="xl113" height="19">12</td> <td class="xl110">DIO30</td> <td class="xl110">Digital Analog I/O</td> <td class="xl110">GPIO, Sensor Controller, Analog</td> </tr> <tr> <td class="xl113" height="19">13</td> <td class="xl110">DIO12</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO</td> </tr> <tr> <td class="xl113" height="19">14</td> <td class="xl110">DIO11/CS</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO</td> </tr> <tr> <td class="xl113" height="19">15</td> <td class="xl110">DIO10/CLK</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO</td> </tr> <tr> <td class="xl113" height="19">16</td> <td class="xl110">DIO9/MISO</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO</td> </tr> <tr> <td class="xl113" height="19">17</td> <td class="xl110">DIO8/MOSI</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO</td> </tr> <tr> <td class="xl113" height="19">18</td> <td class="xl110">DIO07</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller, High drive capability</td> </tr> <tr> <td class="xl113" height="19">19</td> <td class="xl110">DIO06</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller, High drive capability</td> </tr> <tr> <td class="xl113" height="19">20</td> <td class="xl110">DIO05</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller, High drive capability</td> </tr> <tr> <td class="xl113" height="19">21</td> <td class="xl110">DIO04</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller</td> </tr> <tr> <td class="xl113" height="19">22</td> <td class="xl110">DIO03</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller</td> </tr> <tr> <td class="xl113" height="19">23</td> <td class="xl110">DIO02</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller</td> </tr> <tr> <td class="xl113" height="19">24</td> <td class="xl110">DIO01</td> <td class="xl110">Digital I/O</td> <td class="xl110">GPIO, Sensor Controller</td> </tr> <tr> <td class="xl113" height="19">25</td> <td class="xl110">GND</td> <td class="xl110">Power </td> <td class="xl110">Ground</td> </tr> <tr> <td class="xl113" height="19">26</td> <td class="xl110">ANT</td> <td class="xl110">Analog</td> <td class="xl110">Antenna,50 ohm</td> </tr> <tr> <td class="xl113" height="19">27</td> <td class="xl110">GND</td> <td class="xl110">Power </td> <td class="xl110">Ground</td> </tr> <tr> <td class="xl113" height="19">28</td> <td class="xl110">IPEX</td> <td class="xl110">Analog</td> <td class="xl110">Antenna,IPEX Connector,50 ohm</td> </tr> </tbody> </table> <p> </p> <h1>Dimension</h1> <p><img title="dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-dimension" src="http://dwmzone.com/img/cms/dwmzone-DWM-S02C-CC1310-433MHz%20-868MHz%20-915MHz-TI%20-CC1310-Ultra-Low-Power-Long%20-Range-wireless%20-Transceiver-%20module-dimension.png" alt="dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-dimension" /></p>
$ 7.99

DWM-S02C-CC1310 433MHz /868MHz /915MHz TI CC1310 Ultra-Low Power Long Range wireless Transceiver module  is base on the SoC chip CC1310 of Texas Instruments design. It integrated with a high performance RF core, an ARM®Cortex® -M3 controller and a high performance amplifier.

Features

 Radio

- Operate Frequency 433/868/915MHz
- Modulation: MSK、FSK、GFSK、OOK、ASK、4GFSK、CPM
- Sensitivity: -124dBm @Long-Range Mode
- Data Rate from 0.625Kbps to 4Mbps
- Hardware support FEC, Data Whitening, CRC
- Support 802.15.4g
- Support LBT and CCA
- Support Digital RSSI

 Microcontroller

- Powerful ARM® Cortex®-M3
- Up to 48MHz Clock Speed
- 128KB Flash
- 20KB SRAM
- 2-Pin cJTAG and JTAG Debugging
- Support OTA

 Peripherals

- 19 GPIO
- 4 Timers (8x16-Bit or 4x32-Bit),Support PWM Each
- 12-Bit ADC, 8-Channel
- UART、SSI、I2C、I2S
- Real-Time Clock (RTC)
- AES-128 Security Module
- Support 8 Capacitive Sensing Buttons
- Integrated Temperature Sensor

 Electric Specification

- Voltage Range from 2.4 to 3.8V
- Standby: 1uA
- Active-Mode RX: 5.5mA
- Active-Mode TX: 75mA @ +20dBm

 Package

- SMD + DIP
- Antenna Interface: SMD + DIP + IPEX Connector

Applications

 433/868/915MHz ISM and SRD Systems
 Energy Harvesting Application
 Electronic Shelf Label
 Long-Range Sensor Application
 SmartGrid and Automatic Meter Reading
 Wireless Healthcare Application
 Industrial Monitoring and Control
 Home and Building Automation
 Heat Cost Allocators
 Wireless Alarm and Security Systems
 Wireless Sensor Networks
 Active RFID

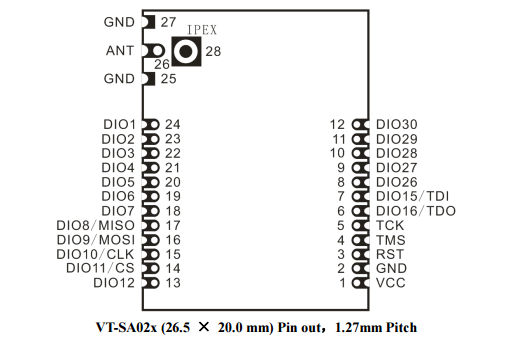

Pin Configuration

dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-pin-configration

Pin name  Pin type Description
No.Name
1VCC Power Voltage Range from 2.4V to 3.8V DC
2GNDPower Ground
3RSTDigital InputReset, active low. No internal pull-up
4TMSDigital I/OJTAG TMSC, High drive capability
5TCKDigital I/OJTAG TCKC
6DIO16/TDODigital I/OGPIO, JTAG TDO, High drive capability
7DIO17/TDIDigital I/OGPIO, JTAG TDI, High drive capability
8DIO26 Digital Analog I/OGPIO, Sensor Controller, Analog
9DIO27Digital Analog I/OGPIO, Sensor Controller, Analog
10DIO28Digital Analog I/OGPIO, Sensor Controller, Analog
11DIO29Digital Analog I/OGPIO, Sensor Controller, Analog
12DIO30Digital Analog I/OGPIO, Sensor Controller, Analog
13DIO12Digital I/OGPIO
14DIO11/CSDigital I/OGPIO
15DIO10/CLKDigital I/OGPIO
16DIO9/MISODigital I/OGPIO
17DIO8/MOSIDigital I/OGPIO
18DIO07Digital I/OGPIO, Sensor Controller, High drive capability
19DIO06Digital I/OGPIO, Sensor Controller, High drive capability
20DIO05Digital I/OGPIO, Sensor Controller, High drive capability
21DIO04Digital I/OGPIO, Sensor Controller
22DIO03Digital I/OGPIO, Sensor Controller
23DIO02Digital I/OGPIO, Sensor Controller
24DIO01Digital I/OGPIO, Sensor Controller
25GNDPower Ground
26ANTAnalogAntenna,50 ohm
27GNDPower Ground
28IPEXAnalogAntenna,IPEX Connector,50 ohm



Dimension

dwmzone-DWM-S02C-CC1310-433MHz -868MHz -915MHz-TI -CC1310-Ultra-Low-Power-Long -Range-wireless -Transceiver- module-dimension
