DWM-ESP8266 ESP-05 Serial to WIFI wireless transceiver module
  • DWM-ESP8266 ESP-05 Serial to WIFI wireless transceiver module

DWM-ESP8266 ESP-05 Serial to WIFI wireless transceiver module

DWM15073002

DWM-ESP8266 ESP-05 DIP package Serial to WIFI wireless transceiver module with IPEX external antenna connector it's for Arduino,Raspberry Pi , AVR and ARM DK and widely used in networking, smart home project when it is connected to the wifi router.

Оптовые скидки

Количество Скидка Вы экономите
10 0,80 $ До 8,00 $
50 1,20 $ До 60,00 $
100 1,50 $ До 150,00 $
1000 1,70 $ До 1 700,00 $
4,30 $
3,80 $ Сохранить 0,50 $
Без НДС
Количество

Описание
This is WiFi serial transceiver module, based on ESP8266 SoC.The SOC has Integrated TCP/IP protocol stack.It is TTL serial communication interface and its parameters can be set by AT command.

It is widely used in networking, smart home project when it is connected to the wifi router.

It can be used for remote monitoring of home appliances, bedroom temperature and humidity, and controlling home appliances by the mobile phone.

Features:

1. Communication interface voltage: 3.3V

2. IO Port Package: Inline package, 5P-2.54MM.

3. Antenna Type: You should use an external antenna.

4. Wireless Network Mode: station / softAP / SoftAP + station

5. Wireless criteria: 802.11 b / g / n

6. WIFI @ 2.4 GHz, support for WPA / WPA2 security mode

7. It is very easy to develop projects with AT command

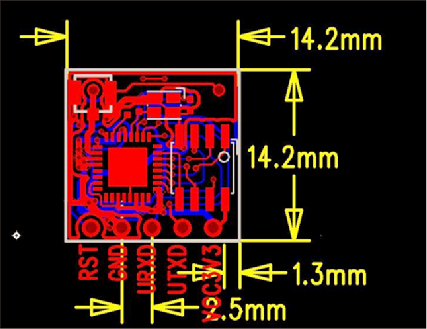

ESP-05 Package

DWM-ESP8266-ESP05 Schematics


General
Model ESP-05
Color Blue
Quantity 1Piece
Material PCB
Specification
Frequency 2.4GHz
Working Voltage 3.3V
Working Current 240mA
English Manual / Spec No
Download Link https://pan.baidu.com/s/1o6OFQ5c
Dimensions & Weight
Dimensions 0.56 in x 0.56 in x 0.08 in (1.42 cm x 1.42 cm x 0.2 cm)
Weight 0.05 oz (1.5 g)
Packing List
1 x ESP8266 Wifi module (ESP-05)
