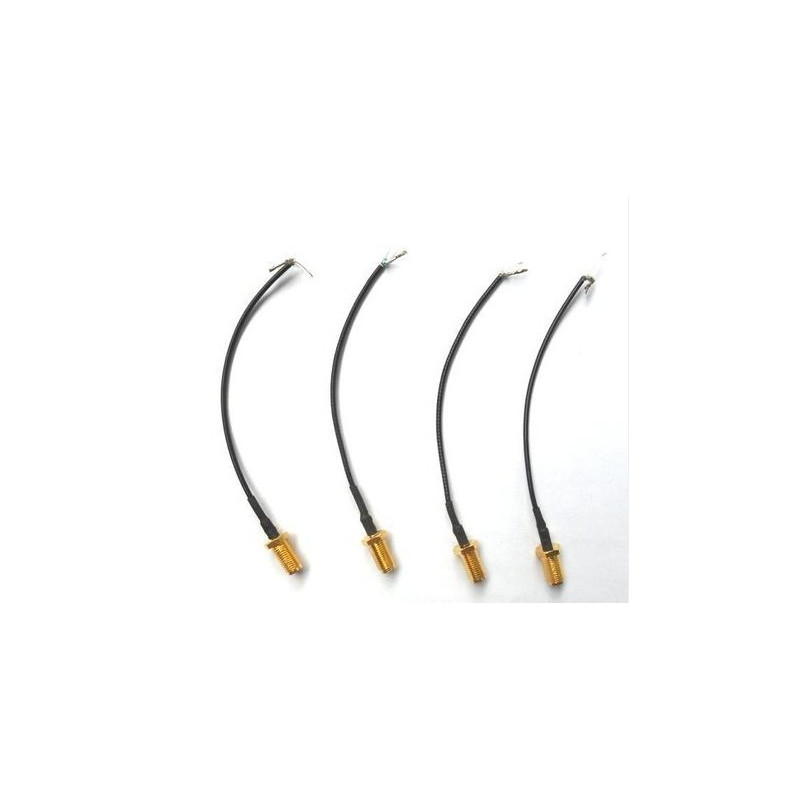

DWM-SCJ SMA RG178 extension jumper cable
SMA RG178 extension cable for GPS, GSM antenna,RF module, SMA cable,IPEX to SMA jumper cable.
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
Frequency Range (GHz) : 0 ~ 3
Input Impedance (Ω) : 50
VSWR: < = 1.20
Cable Length Cable Length (cm) : 10 / 15 / 20 / 25 / 30.
form of interface Connector Type: SMA/K ~ direct welding
inner conductor structure (number/mm) diameter: 7/0.10
insulation outside diameter (mm) : 0.87 0.08
type: single weave
sheathed outside diameter (mm) : 1.80 0.10
characteristic impedance (Ω) : 50
test voltage KV: 1.2
DWM-BNC BNC-JC-3 BNC male /Female RF coaxial connector for 50-3 (5 mm) coaxial cable.
BNC female to MMCX male 50ohm Rf coaxial connector Switch wiring RG316 extension jumper cable wire length can be customized.
