DWM-N532 TI CC1310 30dBm 433MHz /868MHz /915MHz Enhance power SOC RF Transceiver module

DWM21032106
Rating

DWM-N532 TI CC1310 30dBm 433MHz /868MHz /915MHz Enhance power SOC RF Transceiver module design consists of a CC1310 SOC chip with a 10 - 10000 meters wireless transmission.

Center frequency

Volume discounts

Quantity Discount You Save
5 $0.60 Up to $3.00
10 $0.80 Up to $8.00
$10.80
$10.50 Save $0.30
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

Module introduction

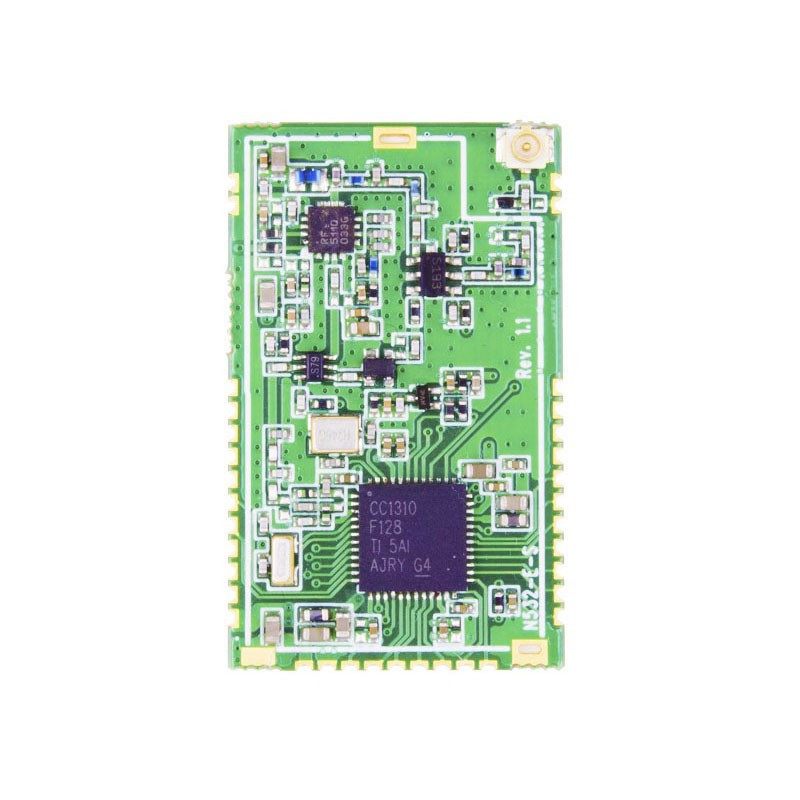

DWM-N532 is a high power CC1310 module, for transmitting and receiving digital data via radio frequency. All of the N532’s electronics (don't including an antenna) reside on a single PCB, and all operational power is derived from a single supply voltage.

The CC1310 module design consists of a CC1310, PA and LNA,all IO pin are brought out.The module available frequence is from 410 to 960Mhz,The hardware is designed for maximum range, 10000m + Range (Line of Sight).

Module Configuration

Model

DWM-N532

Module Interface

UART,SPI

Frequency

410-510Mhz,860-960Mhz

RF Data Rate

0-1000Kbps

Transmitting Power

+30dbm

Receiving Sensitivity

-126dBm

TX Current

1400mA

RX Current

19mA

Frequency Deviation

+/- 10Khz

Communication Distance

10 - 10000m(Visual distance)

Antenna Interface

RF pin, IPEX

Installation Mode

SMD

Volume (mm)

36mm x 22mm x 3mm

Operating Voltage

2 - 3.6V

PA Operating Voltage

2 - 5V

Working Temperature and Humidity Environment

Temperature: -30-70; Humidity 10-95%RH

Storage Temperature and Humidity Environment

Temperature: -40-80; Humidity 10-95%RH

Weight (kg)

≈10g

Application Area

Sub 1G ISM

Smart water meter

Street light solutiion

6lowpan system

Edge routing

6lowpan Gateway

FSK frequency band system

Module pin
