DWM-N620 TI CC1310 CC1190 868MHz /915MHz 27dBm Enhance power SOC RF Transceiver module

DWM21032105
Rating

DWM-N620 TI CC1310 CC1190 868MHz /915MHz 27dBm Enhance power SOC RF Transceiver module design consists of a CC1310 SOC chip and CC1190 PALAN RF chip.

Center frequency

Volume discounts

Quantity Discount You Save
5 $0.60 Up to $3.00
10 $0.80 Up to $8.00
$8.80
$8.50 Save $0.30
Quantity

  • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
  • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)
  • Return policy (edit with Customer reassurance module) Return policy (edit with Customer reassurance module)
Description

Introduction

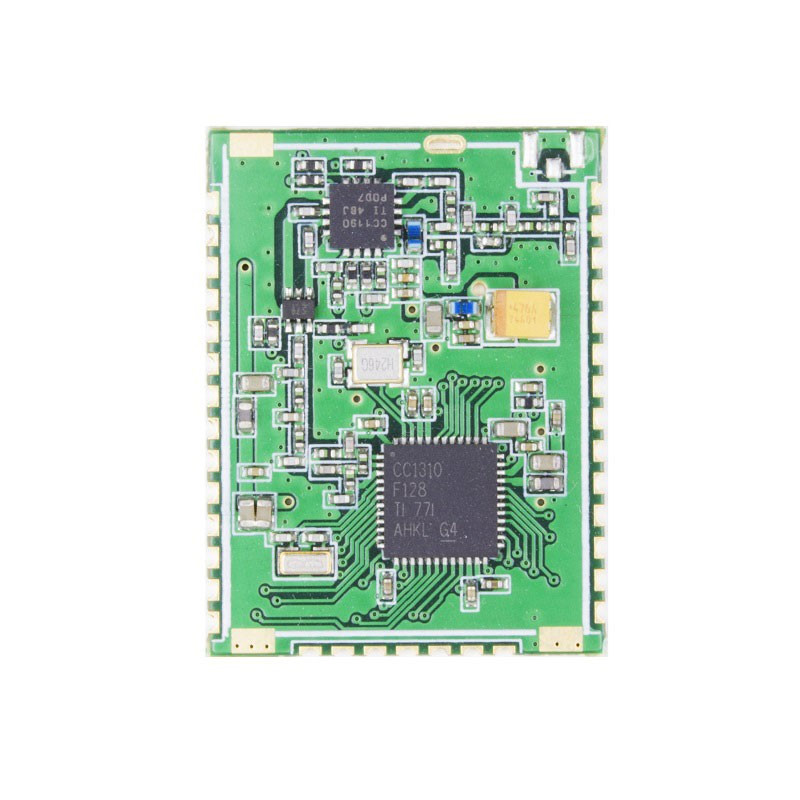

DWM-N620 is a low-cost and small size CC1310 CC1190 module for transmitting and receiving digital data via radio frequency.

The transceiver module design consists of CC1310 CC1190, low-power, integrated sub 1G transceiver RF chip,all IO pin are brought out. The module available frequence is from 860 to 960Mhz,The hardware is designed for maximum range, 5000m + Range (Line of Sight).

Module Configuration

Model

DWM-N620

Module Interface

UART,SPI

Frequency

860-960Mhz

RF Data Rate

0-1000Kbps

Transmitting Power

+27dbm

Receiving Sensitivity

-124dBm

TX Current

700mA

RX Current

12mA

Frequency Deviation

+/- 10Khz

Communication Distance

10 - 5000m(Visual distance)

Antenna Interface

RF pin,ipex

Installation Mode

SMD

Volume (mm)

33mm x 25mm x 3mm

Operating Voltage

2 - 3.6V

Working Temperature and Humidity Environment

Temperature: -30-70; Humidity 10-95%RH

Storage Temperature and Humidity Environment

Temperature: -40-80; Humidity 10-95%RH

Weight (kg)

≈10g

Application Area

Sub 1G ISM

Smart water meter

Street light solutiion

6lowpan system

Edge routing

6lowpan Gateway

FSK frequency band system

Module pin


Product Details
DWM21032105
200 Items
Reviews

Write your review

DWM-N620 TI CC1310 CC1190 868MHz /915MHz 27dBm Enhance power SOC RF Transceiver module

DWM-N620 TI CC1310 CC1190 868MHz /915MHz 27dBm Enhance power SOC RF Transceiver module

DWM-N620 TI CC1310 CC1190 868MHz /915MHz 27dBm Enhance power SOC RF Transceiver module design consists of a CC1310 SOC chip and CC1190 PALAN RF chip.
