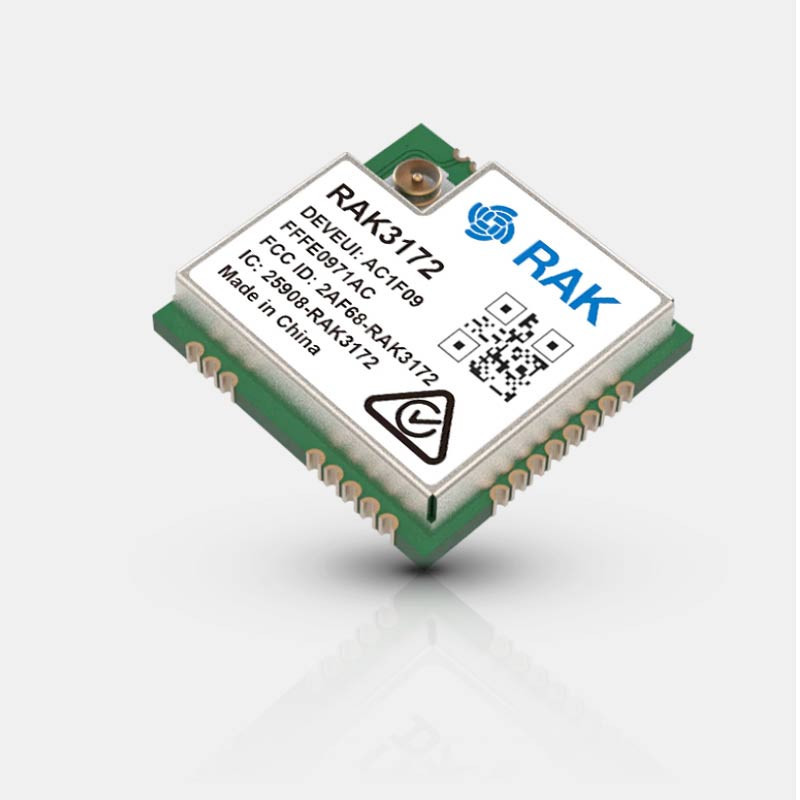

RAK3172 based on STM32WLE5CC low power long range LoRawan module

DWM22082505

RAK3172 based on STM32WLE5CC chip is a low-power long-range transceiver module for LoRa and LoRaWAN applications.

Center frequency
$7.00
Tax excluded
Quantity

Description

Product Description

RAK3172 is a low-power long-range transceiver module for LoRa and LoRaWAN applications based on STM32WLE5CC chip. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications. This module complies with Class A, B,&C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Helium, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.

It can work as a stand alone device by creating custom firmware via RUI3 APIs or can be deployed as a LoRA modem with an external host like a microcontroller or microprocessor that configures and send commands to the module using AT and Binary commands via a UART interface.

Product Features

LoRa module for Smart City, Smart Agriculture, Smart Industry

Compact Form Factor:15x 15.5 x 3.5 mm 32 Pin Stamp Pad for PCB SMT mounting I/O ports: UART/I2C/SPI/ADC/GPIO

Temperature range:-40°C to +85 °C

Supply voltage:2.0~3.6V

Frequency range:150MHz to 960 MHz

Low-Power Wireless Systems with 7.8 kHz to 500 kHz Bandwidth

Ultra-Low Power Consumption 1.69 μA in sleep mode

Core: ARM 32-bit Cortex – M4 with MPU Up to 256 KB flash memory with ECC

64 KB RAM

RUI3 API Compatible

AT and Binary Commands Support

Supported bands:(EU433, CN470, RU864, IN865, EU868, AU915, US915, KR920, and AS923)

Useful Link:

Datasheet

AT Command Manual

Quick Start Guide

Product Details
DWM22082505
550 Items
