LG01-P IOT LoRa Gateway an open source single channel LoRa Gateway
  • LG01-S IOT LoRa Gateway an open source single channel LoRa Gateway

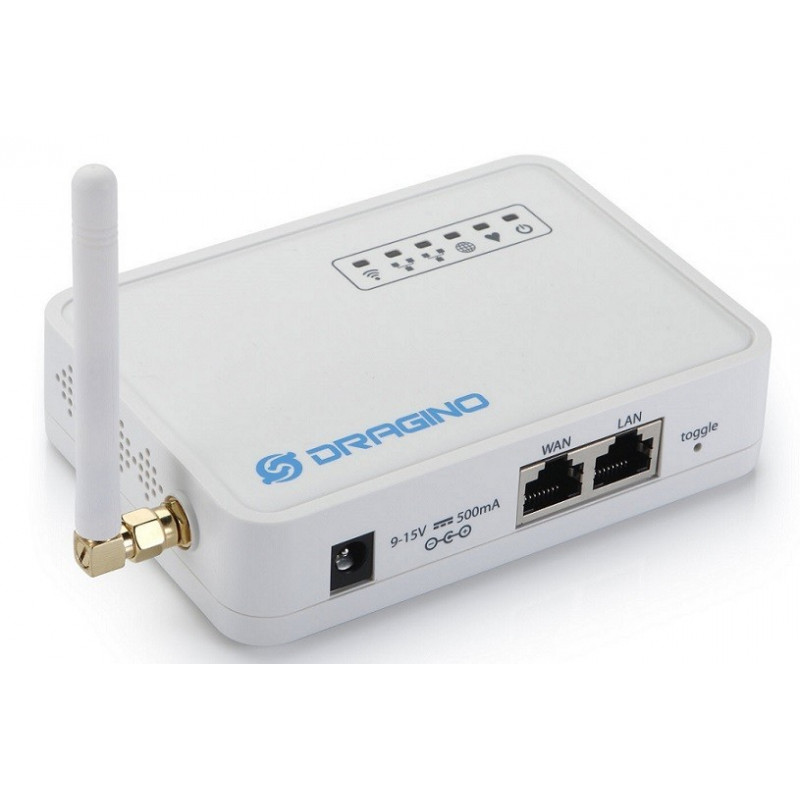

LG01-P IOT LoRa Gateway an open source single channel LoRa Gateway

DWM17111101
Rating

The LG01-P is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular.

Center frequency

Volume discounts

Quantity Unit discount You Save
5 $1.00 Up to $5.00
10 $2.00 Up to $20.00
50 $3.00 Up to $150.00
100 $5.00 Up to $500.00
$96.00
Quantity

Description

The LG01-P is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity.

LG01-P has WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

LG01-P runs Open Source OpenWrt system, user are free to modify the source file or compile the system to support their customized applications.

Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Support WiFi AP, Client or Ad-Hoc(Mesh) mode
  • Internet connection via LAN, WiFi, 3G or 4G
  • Failsafe design provides robustly system
  • Arduino IDE compatible. Easy to program.
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa : 5 ~ 10km

Specifications:

Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB

MCU/LoRa Side:

  • MCU: ATMega328P
  • Flash:32KB, RAM:2KB
  • LoRa Chip: SX2176/78

Interfaces:

  • 10M/100M RJ45 Ports x 2
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • USB 2.0 host connector x 1
  • USB 2.0 host internal interface x 1

Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc

Cellular 4G LTE (optional):

  • Quectel EC25 LTE module (Click the link and choose the right model when order)
  • Micro SIM Slot
  • Internal 4G Antenna + External 4G Sticker Antenna.
  • Up to 100Mbps downlink and 50Mbps uplink data rates
  • Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems



4G Cellular Option

EC25-AU: with Quectel EC25-AU for Latin America, New Zeland, Taiwan

EC25-E:with Quectel EC25-E for EMEA, Korea, Thailand, India.

EC25-A: with Quectel EC25-A for North America/ Rogers/AT&T/T-Mobile.

EC25-J: with Quectek EC25-J for Japan, DOCOMO/SoftBank/ KDDI
