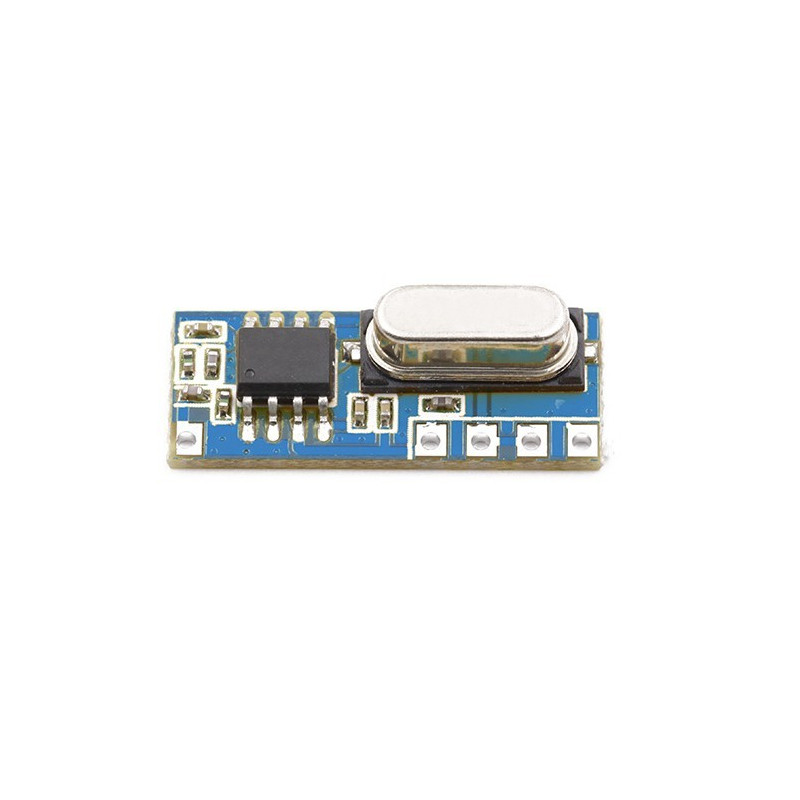

DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module Maximize

DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module

DWM-LR35B 315MHz and the DWM-LR45B 433.92MHz is a tunning free,Low cost  Well integrated ASK /OOK Transmitter RF module.

More details

2000 Items in stock

$ 1.59

On sale On sale!

$ 1.69

» Add to my wishlist

No reward points for this product.


ProductFrom (qty)Discount
DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module100 -$ 0.60
DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module50 -$ 0.40
DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module10 -$ 0.20

30 other products in the same category:

Previous
Next
DWM-LR35B /DWM-LR45B 315MHz /433.92MHz Low Cost ASK /OOK Receiver RF module <h2>Description:</h2> <p>DWM-LR35B 315MHz and the DWM-LR45B 433.92MHz are  tunning free,Low cost  Well integrated ASK /OOK Receiver RF module.It consists brand new RFIC,Features small size,High sensitivity,low power consumption,Low second harmonic and is FCC,CE ROSH approval,It can receive data from the DWM-H34A /DWM-H34B and the transmission distance is upto 120 meters.</p> <h2>Fetures</h2> <table border="1"> <tbody> <tr> <td><strong>Size</strong></td> <td> 22*9*5 mm</td> </tr> <tr> <td><strong>Frequency</strong></td> <td> LR35 is315MHz and The LR45 is 433.92MHz</td> </tr> <tr> <td><strong>Modulation</strong></td> <td> ASK/OOK</td> </tr> <tr> <td><strong>Voltage</strong></td> <td> 4-5.3V</td> </tr> <tr> <td><strong>Power Comsumption</strong></td> <td> 3mA @5V</td> </tr> <tr> <td><strong>Sensitivity</strong></td> <td> -112dBm </td> </tr> <tr> <td><strong>High Data Rate</strong></td> <td> Max 4.8kbps</td> </tr> <tr> <td><strong>Work with Receiver</strong></td> <td> DWM-H34A,DWM-H34B</td> </tr> </tbody> </table> <p> </p> <h2><strong>Application</strong></h2> <p>RC Toy control </p> <p>Remote controller</p> <p>Alarm and security</p> <p>RC Switch</p> <p>Anti-Lost Alarm</p> <p>Anti-Theif Alarm</p> <p>Home Automation</p>
$ 1.69

Description:

DWM-LR35B 315MHz and the DWM-LR45B 433.92MHz are  tunning free,Low cost  Well integrated ASK /OOK Receiver RF module.It consists brand new RFIC,Features small size,High sensitivity,low power consumption,Low second harmonic and is FCC,CE ROSH approval,It can receive data from the DWM-H34A /DWM-H34B and the transmission distance is upto 120 meters.

Fetures

Size 22*9*5 mm
Frequency LR35 is315MHz and The LR45 is 433.92MHz
Modulation ASK/OOK
Voltage 4-5.3V
Power Comsumption 3mA @5V
Sensitivity -112dBm
High Data Rate Max 4.8kbps
Work with Receiver DWM-H34A,DWM-H34B



Application

RC Toy control

Remote controller

Alarm and security

RC Switch

Anti-Lost Alarm

Anti-Theif Alarm

Home Automation
