RAK811 868MHz/ 915MHz LoRa module integrates SX1276 and stm32L with TELEC CE FCC KCC certification <p>RAK811 868MHz/ 915MHz LoRa module complies with the latest LoRaWAN Class A &amp; C protocol specifications, it is simple to access LWPA IOT platforms integrates SX1276 and stm32L with TELEC CE FCC KCC certification.</p> <h2>Features</h2> <p>Long Range LoraWAN operating in the 868 MHz or 915 MHz frequency bands<br />Lora Point to Point communication in the 860MHz-1020MHz frequency<br />LoRaWan Protocol Supported,ISM free Band,Full Certification by region.<br />Small size(22x14x1.7mm) and low power<br />High Receiver Sensitivity: down to -146 dBm<br />TX Power: adjustable from 5dBm to 20dBm high efficiency PA, max PA boost up to 20dbm<br />FSK, GFSK, and LoRa Technology modulation<br />IIP3 = -11 dBm<br />Up to 15 km coverage at suburban and up to 5 km coverage at urban area<br />Easy to use,UART Interface,Serial port AT command,baud rate and air rate online change supported simple ASCII Command set.</p> <p>Frequency Band: 868MHz/ 915 MHz</p> <p>Host Interface: UART</p> <p>TX Power: 14dBm(Typic),20dBm(Max)</p> <p>Current Consumption: 30mA(TX mode 14dBm),5.5mA(RX mode),7.2uA(Sleep mode)</p> <p>Dimension:L x W x H: 22 x 14 x 1.7 mm</p> <table style="width: 366px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="200" /> <col width="166" /> </colgroup> <tbody> <tr> <td class="xl66" width="200" height="19"><span style="font-size: 12pt;"><strong> Iterm</strong></span></td> <td class="xl66" width="166"><span style="font-size: 12pt;"><strong>Value</strong></span></td> </tr> <tr> <td class="xl63" height="19">Chip</td> <td class="xl63">STM32L151</td> </tr> <tr> <td class="xl63" height="19">CPU</td> <td class="xl63">Cortex-M3 32MHz</td> </tr> <tr> <td class="xl63" height="19">ROM</td> <td class="xl63">128KB</td> </tr> <tr> <td class="xl63" height="19">SRAM</td> <td class="xl63">16KB</td> </tr> <tr> <td class="xl63" height="19">Open Source</td> <td class="xl63">Yes</td> </tr> <tr> <td class="xl63" height="19">Internal Programming</td> <td class="xl63">Support</td> </tr> <tr> <td class="xl63" height="19">LoRaWAN</td> <td class="xl63">Support</td> </tr> <tr> <td class="xl63" height="19">LoRaWAN Version</td> <td class="xl63">1.0.2</td> </tr> <tr> <td class="xl63" height="38">LoRaWAN Region</td> <td class="xl64" width="166">AR923/AU915/EU868<br /> /IN865/KR920/US915</td> </tr> <tr> <td class="xl63" height="19">LoRa P2P</td> <td class="xl63">Support</td> </tr> <tr> <td class="xl63" height="19">Frequency</td> <td class="xl63">868MHz-919.9MHz</td> </tr> <tr> <td class="xl63" height="19">I/O</td> <td class="xl65">21</td> </tr> <tr> <td class="xl63" height="19">ADC</td> <td class="xl65">6</td> </tr> <tr> <td class="xl63" height="19">DAC</td> <td class="xl65">0</td> </tr> <tr> <td class="xl63" height="19">UART</td> <td class="xl65">2</td> </tr> <tr> <td class="xl63" height="19">SPI</td> <td class="xl65">0</td> </tr> <tr> <td class="xl63" height="19">I2C</td> <td class="xl65">2</td> </tr> </tbody> </table> <p> </p> <h2>Application</h2> <p>1. Automated Meters Reading<br /> 2. Home and Building Automation<br /> 3. Wireless Alarm and Security Systems<br /> 4. Industrial Monitoring and Control<br /> 5. Long Range Irrigation Systems</p> <p><img title="dwmzone-RAK811-868MHz -915MHz-LoRa -module -integrates -SX1276-and -stm32L-with -TELEC-CE-FCC -KCC-certification-pin definition" src="http://dwmzone.com/img/cms/dwmzone-RAK811-868MHz%20-915MHz-LoRa%20-module%20-integrates%20-SX1276-and%20-stm32L-with%20-TELEC-CE-FCC%20-KCC-certification-pin%20definition.jpg" alt="dwmzone-RAK811-868MHz -915MHz-LoRa -module -integrates -SX1276-and -stm32L-with -TELEC-CE-FCC -KCC-certification-pin definition" width="626" height="1366" /></p> <h2>Useful Link:</h2> <h3>Download</h3> <p><strong>Datasheet</strong></p> <ul> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Hardware%20Design/RAK811%C2%A0Lora%C2%A0Module%C2%A0Datasheet%C2%A0V1.3.pdf" target="_blank"><span style="color: #ff0000;">RAK811 Lora Module Datasheet V1.3.pdf</span></a></span></li> </ul> <p><strong>Application Notes</strong></p> <ul> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/Getting%20Started%20With%20the%20RAK811%20LoRa%20Node.pdf" target="_blank"><span style="color: #ff0000;">Getting Started With the RAK811 LoRa Node.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/How%C2%A0To%C2%A0Connect%C2%A0Lora%C2%A0RAK811%C2%A0to%C2%A0KotahiNet.pdf" target="_blank"><span style="color: #ff0000;">How To Connect Lora RAK811 to KotahiNet.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/How%C2%A0To%C2%A0Connect%C2%A0Lora%C2%A0RAK811%C2%A0to%C2%A0The%20Things%20Network.pdf" target="_blank"><span style="color: #ff0000;">How To Connect Lora RAK811 to The Things Network.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/How%C2%A0to%C2%A0Connect%C2%A0LoRa%C2%A0RAK811%C2%A0to%C2%A0Actility.pdf" target="_blank"><span style="color: #ff0000;">How to Connect LoRa RAK811 to Actility.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/How%C2%A0to%C2%A0Connect%C2%A0LoRa%C2%A0RAK811%C2%A0to%C2%A0Cayenne.pdf" target="_blank"><span style="color: #ff0000;">How to Connect LoRa RAK811 to Cayenne.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Application%20Notes/How%C2%A0to%C2%A0Connect%C2%A0LoRa%C2%A0RAK811%C2%A0to%C2%A0LORIOT.pdf" target="_blank"><span style="color: #ff0000;">How to Connect LoRa RAK811 to LORIOT.pdf</span></a></span></li> </ul> <p><strong>Certification Report</strong></p> <ul> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%20AS923%20Actility%20TPIT%20Certificate.zip" target="_blank"><span style="color: #ff0000;">RAK811 AS923 Actility TPIT Certificate.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%20EU868%20Actility%20TPIT%20Certificate.rar" target="_blank"><span style="color: #ff0000;">RAK811 EU868 Actility TPIT Certificate.rar</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%20LoRa%20Performance%20Test%20Report_V1.0.pdf" target="_blank"><span style="color: #ff0000;">RAK811 LoRa Performance Test Report_V1.0.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811_KCC%C2%A0(Certificate).pdf" target="_blank"><span style="color: #ff0000;">RAK811_KCC (Certificate).pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%C2%A0CE%20Certification.rar" target="_blank"><span style="color: #ff0000;">RAK811 CE Certification.rar</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%C2%A0FCC%20Certification.rar" target="_blank"><span style="color: #ff0000;">RAK811 FCC Certification.rar</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%C2%A0MIC%20Certification.rar" target="_blank"><span style="color: #ff0000;">RAK811 MIC Certification.rar</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Certification%20Report/RAK811%C2%A0ROSH%20Certification.rar" target="_blank"><span style="color: #ff0000;">RAK811 ROSH Certification.rar</span></a></span></li> </ul> <p><strong>Firmware upgrade</strong></p> <ul> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Firmware%20upgrade/Flash%20Loader%20Demonstrator.zip" target="_blank"><span style="color: #ff0000;">Flash Loader Demonstrator.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="txt" href="http://passport.rakwireless.com/stat/en/RAK811/Firmware%20upgrade/ReleaseNotes_20171106.txt" target="_blank"><span style="color: #ff0000;">ReleaseNotes_20171106.txt</span></a></span></li> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Firmware%20upgrade/V1023.zip" target="_blank"><span style="color: #ff0000;">V1023.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Firmware%20upgrade/V1026.zip" target="_blank"><span style="color: #ff0000;">V1026.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Firmware%20upgrade/V2022.zip" target="_blank"><span style="color: #ff0000;">V2022.zip</span></a></span></li> </ul> <p><strong>Hardware Design</strong></p> <ul> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811/Hardware%20Design/LoRa%20Module%203D%20File.zip" target="_blank"><span style="color: #ff0000;">LoRa Module 3D File.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811/Hardware%20Design/RAK811Reference%C2%A0design.rar" target="_blank"><span style="color: #ff0000;">RAK811Reference design.rar</span></a></span></li> </ul> <p><strong> Software Development</strong></p> <ul> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Software%20Development/RAK811%C2%A0Arduino%C2%A0Library%C2%A0Use%C2%A0Guide.pdf" target="_blank"><span style="color: #ff0000;">RAK811 Arduino Library Use Guide.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Software%20Development/RAK811%C2%A0Lora%C2%A0AT%C2%A0Command%C2%A0V1.4.pdf" target="_blank"><span style="color: #ff0000;">RAK811 Lora AT Command V1.4.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Software%20Development/RAK811%C2%A0Lora%C2%A0Module%C2%A0Datasheet%C2%A0V1.3.pdf" target="_blank"><span style="color: #ff0000;">RAK811 Lora Module Datasheet V1.3.pdf</span></a></span></li> <li><span style="color: #ff0000;"><a class="pdf" href="http://passport.rakwireless.com/stat/en/RAK811/Software%20Development/RAK811%C2%A0OpenMCU%20Developing%20User%20ManualV1.0.pdf" target="_blank"><span style="color: #ff0000;">RAK811 OpenMCU Developing User ManualV1.0.pdf</span></a></span></li> </ul> <p><span><span><span><span><br /></span></span></span></span></p> <p><strong>Tools</strong></p> <ul> <li><span style="color: #ff0000;"><a class="rar" href="http://passport.rakwireless.com/stat/en/RAK811-N/Tools/CH340%20Drive.rar" target="_blank"><span style="color: #ff0000;">CH340 Drive.rar</span></a></span></li> <li><span style="color: #ff0000;"><a class="zip" href="http://passport.rakwireless.com/stat/en/RAK811-N/Tools/CP210x_Windows_Drivers.zip" target="_blank"><span style="color: #ff0000;">CP210x_Windows_Drivers.zip</span></a></span></li> <li><span style="color: #ff0000;"><a class="exe" href="http://passport.rakwireless.com/stat/en/RAK811-N/Tools/RAK%20LoRa%20Upgrade%20Tool%20V1.0.exe" target="_blank"><span style="color: #ff0000;">RAK LoRa Upgrade Tool V1.0.exe</span></a></span></li> </ul> <p><span><span><span><span><br /></span></span></span></span></p> <h2><span>Q &amp; A</span></h2> <p><span>Q1: W</span><span>hat is the model of SMT32 ARM chip?</span></p> <p><span style="color: #ff0000;">A1: We use STM32L151CB with CoIDE.</span></p> <p><span>Q2: <span>Where we can get RAK811 AT commands for </span><span> <span>sending data and configuration.</span></span></span></p> <p><span style="color: #ff0000;">A2: http://www.rakwireless.com/en/download/RAK811%20LoRa%20Module/Software%20Development</span></p> <p><span>Q3: How can we quick start to use your Lora module?</span></p> <p><span style="color: #ff0000;">A3: We provide the arduino compatible board WisNode-lora, pls follow the link to understand the quick start guide.</span></p> <p><span>Q4: <span> </span><span> </span>How to optimize your Lorawan STACK? </span></p> <p><span style="color: #ff0000;">A4: We have open source libary of loraWan stack in github, pls follow the link:</span></p> <p><span style="color: #ff0000;">      https://github.com/RAKWireless/RAK811_LoRaMac_CoIDE </span></p> <h2><span data-spm-anchor-id="a2g03.10010108.1000023.i2.1218a0efmZNwkR">AD</span></h2> <p><a title="shopping-shipping-agent-service-process" href="http://dwmzone.com/blog/shopping-shipping-agent-service-process/"><img title="Shopping-Shipping Agent service" src="http://dwmzone.com/img/cms/Shopping-Shipping%20Agent%20service.png" alt="Shopping-Shipping Agent service" width="618" height="275" /></a></p> <p><span><span><span><span><br /></span></span></span></span></p> <p><span><br /></span></p>
$ 18.50

RAK811 868MHz/ 915MHz LoRa module complies with the latest LoRaWAN Class A & C protocol specifications, it is simple to access LWPA IOT platforms integrates SX1276 and stm32L with TELEC CE FCC KCC certification.

Features

Long Range LoraWAN operating in the 868 MHz or 915 MHz frequency bands
Lora Point to Point communication in the 860MHz-1020MHz frequency
LoRaWan Protocol Supported,ISM free Band,Full Certification by region.
Small size(22x14x1.7mm) and low power
High Receiver Sensitivity: down to -146 dBm
TX Power: adjustable from 5dBm to 20dBm high efficiency PA, max PA boost up to 20dbm
FSK, GFSK, and LoRa Technology modulation
IIP3 = -11 dBm
Up to 15 km coverage at suburban and up to 5 km coverage at urban area
Easy to use,UART Interface,Serial port AT command,baud rate and air rate online change supported simple ASCII Command set.

Frequency Band: 868MHz/ 915 MHz

Host Interface: UART

TX Power: 14dBm(Typic),20dBm(Max)

Current Consumption: 30mA(TX mode 14dBm),5.5mA(RX mode),7.2uA(Sleep mode)

Dimension:L x W x H: 22 x 14 x 1.7 mm

 ItermValue
ChipSTM32L151
CPUCortex-M3 32MHz
ROM128KB
SRAM16KB
Open SourceYes
Internal ProgrammingSupport
LoRaWANSupport
LoRaWAN Version1.0.2
LoRaWAN RegionAR923/AU915/EU868
/IN865/KR920/US915
LoRa P2PSupport
Frequency868MHz-919.9MHz
I/O21
ADC6
DAC0
UART2
SPI0
I2C2



Application

1. Automated Meters Reading
2. Home and Building Automation
3. Wireless Alarm and Security Systems
4. Industrial Monitoring and Control
5. Long Range Irrigation Systems

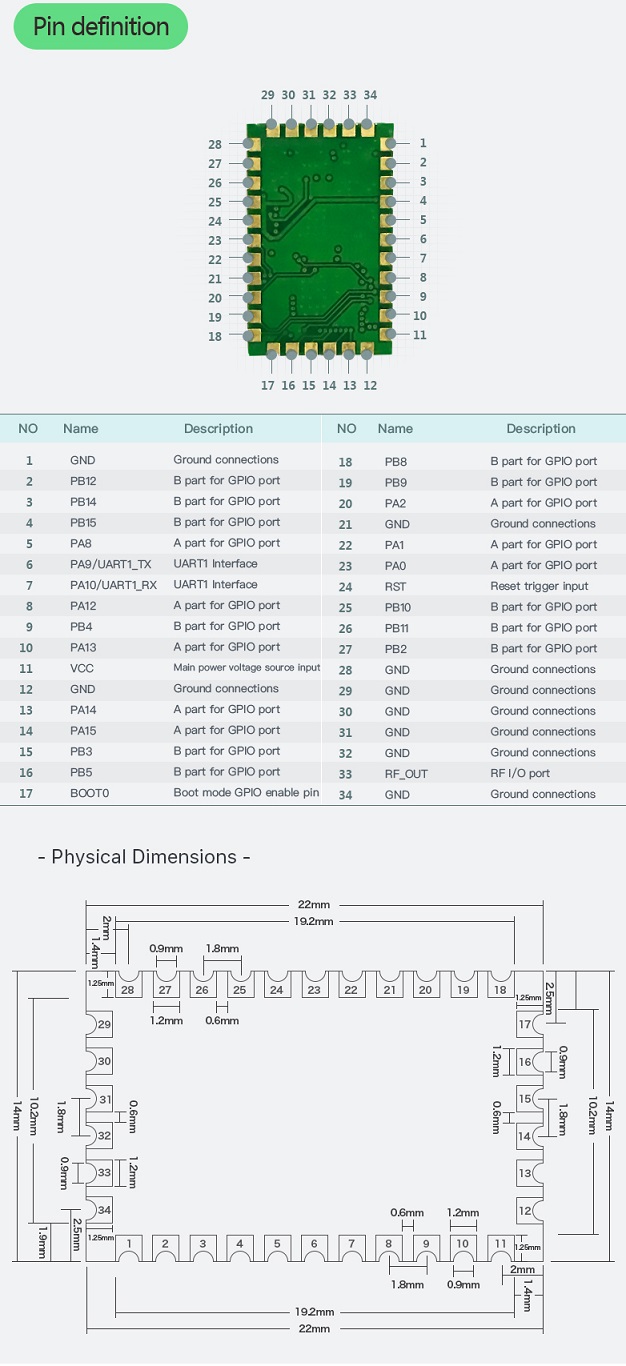

dwmzone-RAK811-868MHz -915MHz-LoRa -module -integrates -SX1276-and -stm32L-with -TELEC-CE-FCC -KCC-certification-pin definition

Useful Link:

Download

Datasheet

Application Notes

Certification Report

Firmware upgrade

Hardware Design

 Software Development


Tools


Q & A

Q1: What is the model of SMT32 ARM chip?

A1: We use STM32L151CB with CoIDE.

Q2: Where we can get RAK811 AT commands for  sending data and configuration.

A2: http://www.rakwireless.com/en/download/RAK811%20LoRa%20Module/Software%20Development

Q3: How can we quick start to use your Lora module?

A3: We provide the arduino compatible board WisNode-lora, pls follow the link to understand the quick start guide.

Q4:   How to optimize your Lorawan STACK?

A4: We have open source libary of loraWan stack in github, pls follow the link:

      https://github.com/RAKWireless/RAK811_LoRaMac_CoIDE
