A6 GPRS/GSM Shield Maximize

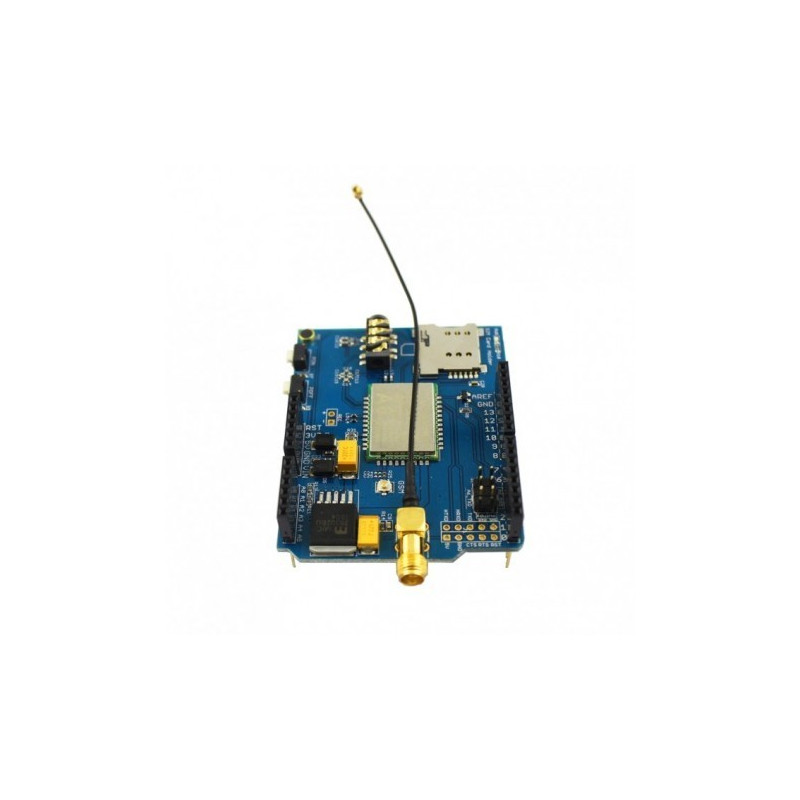

A6 GPRS/GSM Shield board

This is a A6 GPRS/GSM Shield, which is use the newest A6 gprs/gsm module, A6 is a low-cost but efficient chip. With its ultra-small size, low power consumption and wide operating temperature range.

More details

DWM16122005

100 Items in stock

$ 22.50

Reduced price!

$ 23.00

» Add to my wishlist

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 points that can be converted into a voucher of $ 0.40.


ProductFrom (qty)Discount
A6 GPRS/GSM Shield board10 -$ 2.00
A6 GPRS/GSM Shield board5 -$ 1.00

29 other products in the same category:

Previous
Next
A6 GPRS/GSM Shield board <div id="productDescription" class="biggerText">This is a A6 GPRS/GSM Shield, which is use the newest A6 gprs/gsm module, A6 is a low-cost but efficient chip. With its ultra-small size, low power consumption and wide operating temperature range, A6 is an ideal solution for M2M applications, for automotive, industrial and PDA, personal tracking, power environmental monitoring, wireless POS, smart metering, and other M2M applications , to provide comprehensive GSM / GPRS text messaging, voice and data transmission services. We design this A6 shield for making it work with Arduino/Crowduino more convenient.</div> <div><br /><img src="http://www.elecrow.com/download/A6%20shield.png" alt="" /></div> <div id="productDescriptionHeading"> <h3>Features</h3> <ul> <li>Arduino compatible</li> <li>Work voltage: 5-12V</li> <li>Operating temperature -30 ℃ to + 80 ℃;</li> <li>1KG peak suction</li> <li>Low standby current</li> <li>Standby average current 3ma less;</li> <li>Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;</li> <li>Support China Mobile and China Unicom's 2G GSM network worldwide;</li> <li>GPRS Class 10;</li> <li>Sensitivity &lt;-105;</li> <li>Support voice calls;</li> <li>Support SMS text messaging;</li> <li>Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;</li> <li>Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker;</li> <li>Supports two serial ports, a serial port to download an AT command port;</li> <li>AT command supports the standard AT and TCP / IP command interface;</li> <li>Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;</li> <li>Support ROHS, FCC, CE, CTA certification;</li> <li>SMT 42PIN</li> </ul> <h3>Specifications</h3> <ul> <li>Quad-band: 850/900/1800/1900 MHz</li> <li>GPRS multi-slot: 12, 1 to 12 may be configured</li> <li>GPRS mobile station: Class B</li> <li>Compatible with GSM Phase 2/2 +: Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800 / 1900MHz)</li> <li>Current consumption: 1.3mA @ DRX = 5; 1.2mA @ DRX = 9</li> <li>AT command control: Standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker</li> <li>SIM Application Toolkit</li> <li>GPRS Class 10: Up 85.6 kbps (upstream) &amp; 42.8Kbps (downlink)</li> <li>PBCCH support</li> <li>Coding scheme: CS 1, 2, 3, 4</li> <li>Support CSD: Up 14.4 kbps</li> <li>Support USSD</li> <li>Stack: PPP / TCP / UDP / HTTP / FTP / SMTP / MUX</li> </ul> <h3>Package list</h3> <ul> <li>A6 GPRSGSM Shield x1</li> <li>GSM antenna x 1</li> </ul> <h3>Wiki &amp; External links</h3> <ul> <li><a href="https://www.elecrow.com/download/A6%20GPRS%20GSM%20Shield%20v1.0.zip">Schematic files</a></li> <li><a href="https://www.elecrow.com/download/A6%20module%20AT%20commands%20V1.01.pdf">AT commands</a></li> <li><a href="http://www.elecrow.com/wiki/index.php?title=A6_GPRS/GSM_Shield">Wiki link (User manual)</a></li> </ul> </div>
$ 23.00
This is a A6 GPRS/GSM Shield, which is use the newest A6 gprs/gsm module, A6 is a low-cost but efficient chip. With its ultra-small size, low power consumption and wide operating temperature range, A6 is an ideal solution for M2M applications, for automotive, industrial and PDA, personal tracking, power environmental monitoring, wireless POS, smart metering, and other M2M applications , to provide comprehensive GSM / GPRS text messaging, voice and data transmission services. We design this A6 shield for making it work with Arduino/Crowduino more convenient.

Features

  • Arduino compatible
  • Work voltage: 5-12V
  • Operating temperature -30 ℃ to + 80 ℃;
  • 1KG peak suction
  • Low standby current
  • Standby average current 3ma less;
  • Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;
  • Support China Mobile and China Unicom's 2G GSM network worldwide;
  • GPRS Class 10;
  • Sensitivity <-105;
  • Support voice calls;
  • Support SMS text messaging;
  • Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;
  • Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker;
  • Supports two serial ports, a serial port to download an AT command port;
  • AT command supports the standard AT and TCP / IP command interface;
  • Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;
  • Support ROHS, FCC, CE, CTA certification;
  • SMT 42PIN

Specifications

  • Quad-band: 850/900/1800/1900 MHz
  • GPRS multi-slot: 12, 1 to 12 may be configured
  • GPRS mobile station: Class B
  • Compatible with GSM Phase 2/2 +: Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800 / 1900MHz)
  • Current consumption: 1.3mA @ DRX = 5; 1.2mA @ DRX = 9
  • AT command control: Standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker
  • SIM Application Toolkit
  • GPRS Class 10: Up 85.6 kbps (upstream) & 42.8Kbps (downlink)
  • PBCCH support
  • Coding scheme: CS 1, 2, 3, 4
  • Support CSD: Up 14.4 kbps
  • Support USSD
  • Stack: PPP / TCP / UDP / HTTP / FTP / SMTP / MUX

Package list

  • A6 GPRSGSM Shield x1
  • GSM antenna x 1
