DWM-DL-24 TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module Maximize

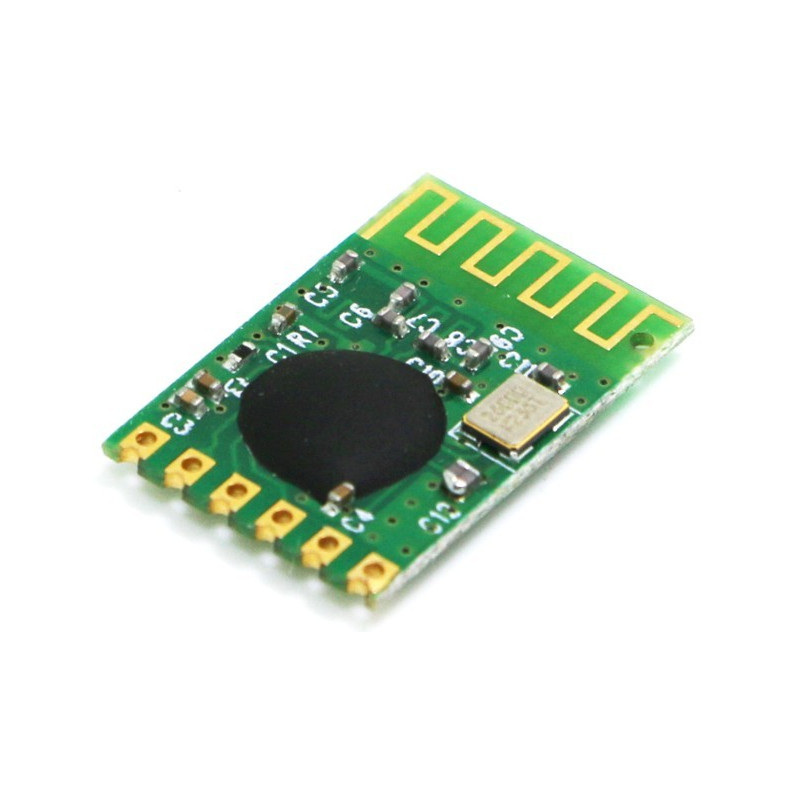

DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module

DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Modulewhich is built by TI CC2500 rf chipset.Interface module adopts SMD, DIP type.

More details

DWM17060704

5000 Items in stock

$ 2.30

Reduced price!

$ 2.50

» Add to my wishlist

No reward points for this product.


ProductFrom (qty)Discount
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module1000 -$ 1.25
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module500 -$ 1.10
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module100 -$ 1.00
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module50 -$ 0.80
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module10 -$ 0.50
DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module5 -$ 0.30

7 other products in the same category:

DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Module <p><span id="tran_0" class="copied" data-aligning="#tran_0,#src_0">DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Modulewhich is built by TI CC2500 rf chipset.Interface module adopts SMD, DIP type.due to the inside of the black rubber and cable tie different expansion coefficient, binding module need manual welding.</span><span id="tran_1" class="copied highLight" data-aligning="#tran_1,#src_1">Module size is small, convenient for application in portable products, and through cooperate with low power consumption MCU can well meet the requirements of low power consumption system.</span></p> <h2><span style="font-size: 14pt;"><strong><span class="copied highLight" data-aligning="#tran_1,#src_1">Electrical character</span></strong></span></h2> <table style="width: 540px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="152" /> <col width="126" /> <col width="183" /> <col width="79" /> </colgroup> <tbody> <tr> <td class="xl65" width="152" height="46">Description</td> <td class="xl65" width="126">Min</td> <td class="xl65" width="183">Max</td> <td class="xl65" width="79">Unit</td> </tr> <tr> <td class="xl65" width="152" height="46">Power Supply</td> <td class="xl65" width="126">1.8</td> <td class="xl65" width="183">3.6</td> <td class="xl65" width="79">V</td> </tr> <tr> <td class="xl65" width="152" height="35">Work Current</td> <td class="xl65" width="126">RX<17mA</td> <td class="xl65" width="183">TX=22mA@0dbm</td> <td class="xl65" width="79">mA</td> </tr> <tr> <td class="xl65" width="152" height="31">Standby current</td> <td class="xl65" width="126"> </td> <td class="xl65" width="183"><1uA</td> <td class="xl65" width="79">uA</td> </tr> <tr> <td class="xl65" width="152" height="31">I/O Drive Capacity</td> <td class="xl65" width="126">Vss-0.3</td> <td class="xl65" width="183">Vdd+0.3</td> <td class="xl65" width="79">V</td> </tr> <tr> <td class="xl65" width="152" height="33">Temperature</td> <td class="xl65" width="126">-20</td> <td class="xl65" width="183">75</td> <td class="xl65" width="79">℃</td> </tr> </tbody> </table> <p> </p> <h2><strong>RF Performance</strong><strong>(The temperature 25℃,VCC 3.3V</strong><span>)</span></h2> <table style="width: 558px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="57" /> <col width="192" /> <col width="72" /> <col width="91" /> <col width="72" /> <col width="74" /> </colgroup> <tbody> <tr> <td class="xl65" width="57" height="23">Num</td> <td class="xl65" width="192">Character</td> <td class="xl67" colspan="3" width="235">Parameters</td> <td class="xl65" width="74">Unit</td> </tr> <tr> <td class="xl65" width="57" height="23"> </td> <td class="xl65" width="192"> </td> <td class="xl65" width="72">Min</td> <td class="xl65" width="91">Typic</td> <td class="xl65" width="72">Max</td> <td class="xl65" width="74"> </td> </tr> <tr> <td class="xl65" width="57" height="23">1</td> <td class="xl66" width="192">Frequency</td> <td class="xl65" width="72">2400</td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">2483.5</td> <td class="xl65" width="74">MHz</td> </tr> <tr> <td class="xl65" width="57" height="23">2</td> <td class="xl66" width="192">Deviation</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91">100K</td> <td class="xl65" width="72"> </td> <td class="xl65" width="74">Hz</td> </tr> <tr> <td class="xl65" width="57" height="23">3</td> <td class="xl66" width="192">Power Output</td> <td class="xl65" width="72">-30</td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">1</td> <td class="xl65" width="74">dBm</td> </tr> <tr> <td class="xl65" width="57" height="23">4</td> <td class="xl66" width="192">Senstivity</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91">-89</td> <td class="xl65" width="72"> </td> <td class="xl65" width="74">dBm</td> </tr> <tr> <td class="xl65" width="57" height="23">5</td> <td class="xl66" width="192">Modulation</td> <td class="xl65" width="72">GFSK</td> <td class="xl65" width="91">2-FSK</td> <td class="xl65" width="72">OOK</td> <td class="xl65" width="74">MSK</td> </tr> <tr> <td class="xl65" width="57" height="23">6</td> <td class="xl66" width="192">Data rate</td> <td class="xl65" width="72">1.2</td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">500</td> <td class="xl65" width="74">Kbps</td> </tr> <tr> <td class="xl65" width="57" height="23">7</td> <td class="xl66" width="192">Harmonic Power</td> <td class="xl65" width="72">-48</td> <td class="xl65" width="91">——</td> <td class="xl65" width="72">-45</td> <td class="xl65" width="74">dBm</td> </tr> <tr> <td class="xl65" width="57" height="32">8</td> <td class="xl66" width="192">Transmision distance</td> <td class="xl65" width="72">80</td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">100</td> <td class="xl65" width="74">M</td> </tr> <tr> <td class="xl65" width="57" height="52">9</td> <td class="xl66" width="192">Data rate:2.4Kbps,Senstivity</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91">-104</td> <td class="xl65" width="72"> </td> <td class="xl65" width="74">dBm</td> </tr> <tr> <td class="xl65" width="57" height="46">10</td> <td class="xl66" width="192">OOK Modulation,Data rate</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">100</td> <td class="xl65" width="74">Kbps</td> </tr> <tr> <td class="xl65" width="57" height="23">11</td> <td class="xl66" width="192">Standby Current</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91"> </td> <td class="xl65" width="72">0.9</td> <td class="xl65" width="74">uA</td> </tr> <tr> <td class="xl65" width="57" height="23">12</td> <td class="xl66" width="192">Crystal *3225/ 2*6</td> <td class="xl65" width="72"> </td> <td class="xl65" width="91">10</td> <td class="xl65" width="72"> </td> <td class="xl65" width="74">PPM</td> </tr> </tbody> </table> <p> </p> <p> </p> <h2><span style="font-size: 12pt;">PIN Map for DWM-DL-24D</span></h2> <table style="width: 376px;" border="2" cellspacing="0" cellpadding="0"><colgroup><col width="57" /> <col width="192" /> <col width="127" /> </colgroup> <tbody> <tr> <td class="xl67" width="57" height="24">PIN</td> <td class="xl67" width="192">Definition</td> <td class="xl67" width="127">Function</td> </tr> <tr> <td class="xl65" width="57" height="23">1</td> <td class="xl65" width="192">VCC</td> <td class="xl66" width="127">DC1.8-3.6V</td> </tr> <tr> <td class="xl65" width="57" height="23">2</td> <td class="xl65" width="192">MOSI</td> <td class="xl66" width="127">MOSI</td> </tr> <tr> <td class="xl65" width="57" height="23">3</td> <td class="xl65" width="192">SCLK</td> <td class="xl66" width="127">CLOCK</td> </tr> <tr> <td class="xl65" width="57" height="23">4</td> <td class="xl65" width="192">MISO</td> <td class="xl66" width="127">MISO</td> </tr> <tr> <td class="xl68" width="57" height="23">5</td> <td class="xl68" width="192">CSN</td> <td class="xl69" width="127">CSN=0</td> </tr> <tr> <td class="xl68" width="57" height="23">6</td> <td class="xl68" width="192">GND</td> <td class="xl69" width="127">GND</td> </tr> <tr> <td class="xl68" width="57" height="23">7</td> <td class="xl68" width="192">ANT</td> <td class="xl69" width="127"> ANT 50Ω</td> </tr> </tbody> </table> <h2> </h2> <h2>Appliation</h2> <p><span id="tran_0" class="copied" data-aligning="#tran_0,#src_0">Wireless game controller</span><br /><span id="tran_1" class="copied" data-aligning="#tran_1,#src_1">Low wireless keyboard and mouse</span><br /><span id="tran_2" class="copied" data-aligning="#tran_2,#src_2">Low consumer electronic products and toys, model aircraft</span><br /><span id="tran_3" class="copied" data-aligning="#tran_3,#src_3">Low voice wireless audio</span><br /><span id="tran_4" class="copied" data-aligning="#tran_4,#src_4">When monitoring data transmission</span><br /><span id="tran_5" class="copied" data-aligning="#tran_5,#src_5">"Smart home control</span><br /><span id="tran_6" class="copied" data-aligning="#tran_6,#src_6">Low support remote radio frequency (RF) technology</span></p>
$ 2.50

DWM-DL-24A TI CC2500 Low cost with PCB Antenna 2.4GHz Transceiver RF Modulewhich is built by TI CC2500 rf chipset.Interface module adopts SMD, DIP type.due to the inside of the black rubber and cable tie different expansion coefficient, binding module need manual welding.Module size is small, convenient for application in portable products, and through cooperate with low power consumption MCU can well meet the requirements of low power consumption system.

Electrical character

DescriptionMinMaxUnit
Power Supply1.83.6V
Work CurrentRX<17mATX=22mA@0dbmmA
Standby current <1uAuA
I/O Drive CapacityVss-0.3Vdd+0.3V
Temperature-2075



RF Performance(The temperature 25℃,VCC 3.3V

NumCharacterParametersUnit
  MinTypicMax
1Frequency2400 2483.5MHz
2Deviation 100K Hz
3Power Output-30 1dBm
4Senstivity -89 dBm
5ModulationGFSK2-FSKOOKMSK
6Data rate1.2 500Kbps
7Harmonic Power-48——-45dBm
8Transmision distance80 100M
9Data rate:2.4Kbps,Senstivity -104 dBm
10OOK Modulation,Data rate  100Kbps
11Standby Current  0.9uA
12Crystal *3225/ 2*6 10 PPM





PIN Map for DWM-DL-24D

PINDefinitionFunction
1VCCDC1.8-3.6V
2MOSIMOSI
3SCLKCLOCK
4MISOMISO
5CSNCSN=0
6GNDGND
7ANT ANT 50Ω



Appliation

Wireless game controller
Low wireless keyboard and mouse
Low consumer electronic products and toys, model aircraft
Low voice wireless audio
When monitoring data transmission
"Smart home control
Low support remote radio frequency (RF) technology
